EasyPro Fountain Nozzles

EasyPro Fountain Nozzles are ideal for use with mag-drive pumps with 3/4" outlet, such as EP850-EP1350 or similar pumps. Diverter Valve Set is required for installation of all below-listed nozzles.

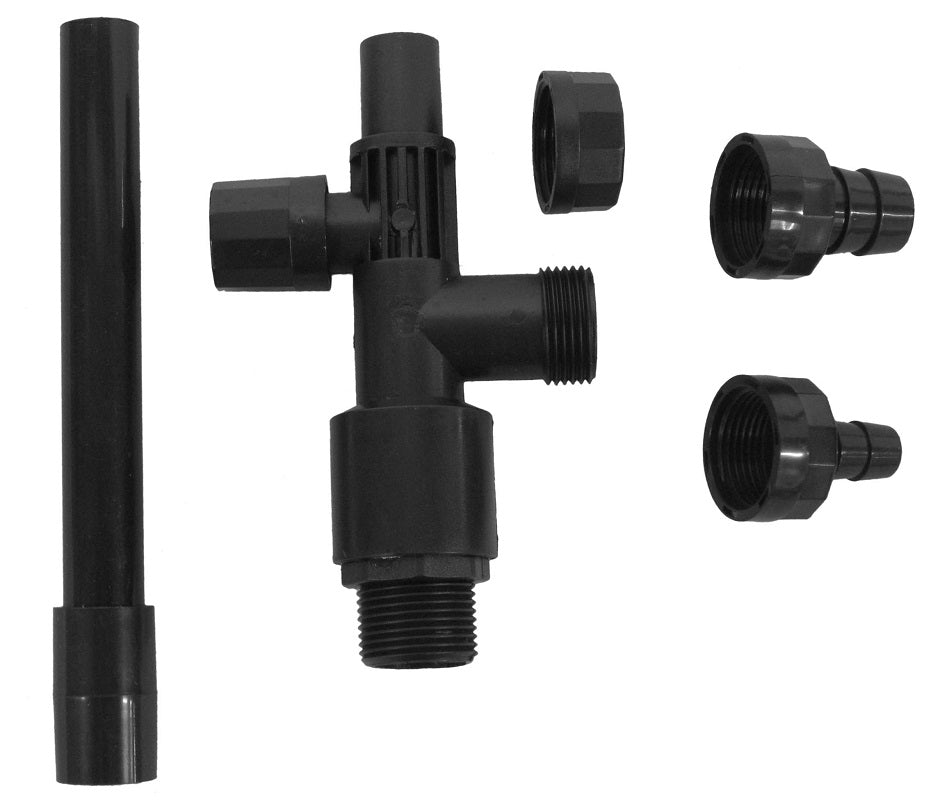

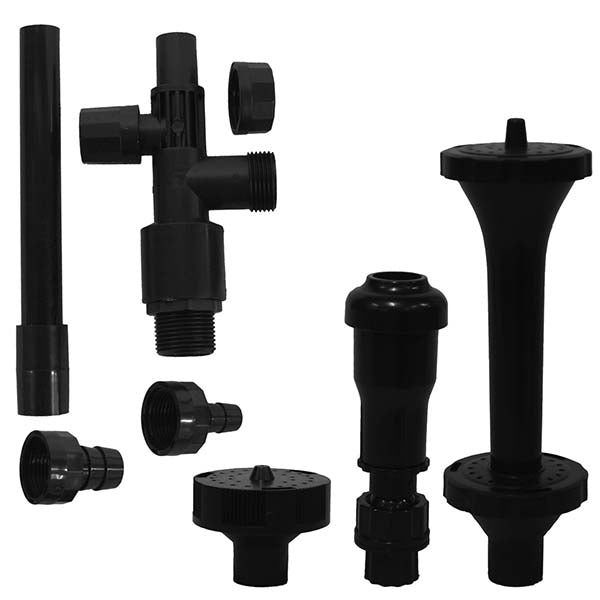

The Diverter Valve Set (EPD10) includes a diverter valve assembly with 3/4" MPT inlet, 5-1/2" extension, coupler and two barbed adapters (1/2" and 3/4") for use with tubing connections. The Complete 3-Nozzle Set (EP3N) includes the entire Diverter Valve Set, Foam Jet Nozzle, Volcano Nozzle and Double Volcano Nozzle.

Nozzles:

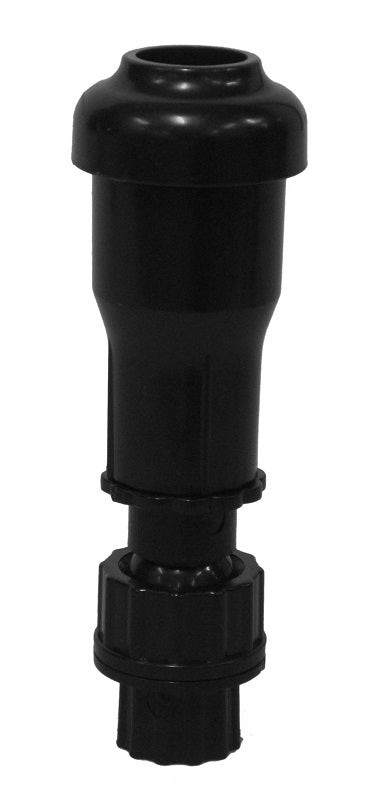

• Foam Jet Nozzle (EFN1) features a swivel base and is 5-3/4" tall. It has a maximum spray height of 4' from the base and a maximum spray width of 1'.

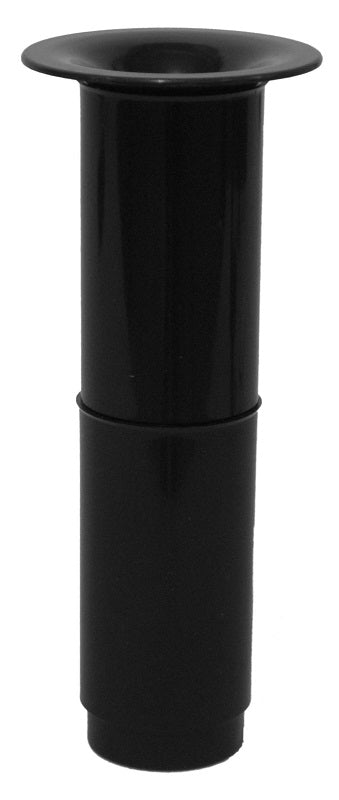

• Water Bell Nozzle (EFN2) is 6-1/2" tall. It has a maximum spray height of 20" from the base and a maximum spray width of 2'.

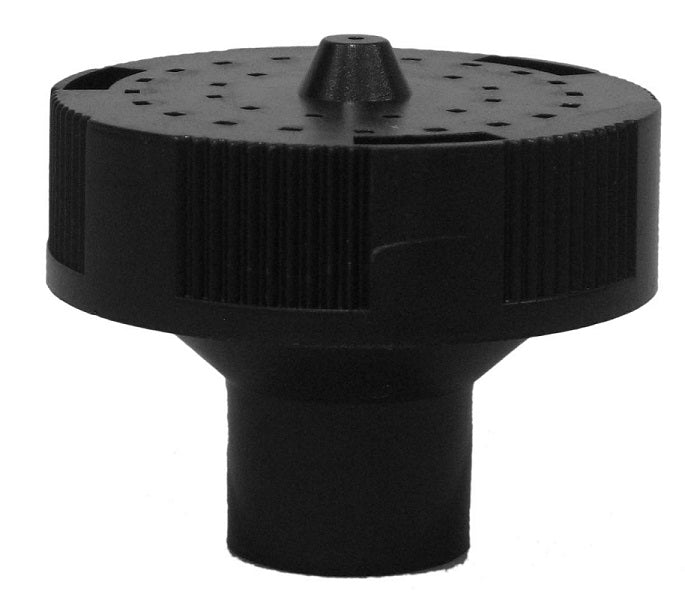

• Volcano Nozzle (EFN3) is 1-3/4" tall. It has a maximum spray height of 5' from the base and a maximum spray width of 5'.

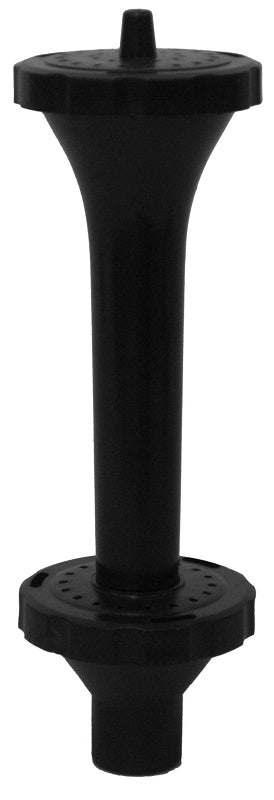

• Double Volcano Nozzle (EFN4) is 7-1/2" tall. It has a maximum spray height of 5' from the base and a maximum spray width of 4.5'.
