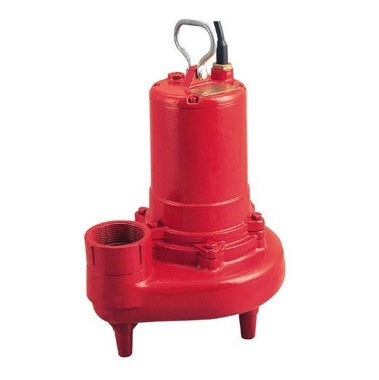

F&Q® 80WQ-4P Series Heavy-Duty High-Volume Cast Iron Pumps

F&Q® 80WQ-4P Series Pumps are heavy-duty, non-clogging, high-volume cast iron pumps perfect for large scale waterfalls, decorative ponds, drainage systems or raw water applications! Capable of handling solds up to 2", these durable pumps feature 3" discharge for high volume flow and thermal overload protection with automatic reset. Volute, impeller, motor housing and seal plate are all made of ASTM A-48 Class 30 Cast Iron. Item ships from manufacturer.

• Dimensions: 14" x 12" x 20.5"
• Motor Speed: 1750RPM (nominal)
• Ambient Temp: 104°F Continuous, 140°F intermittent
• Max. Start/Stop Cycles: 15 per hour
• Impeller Type: 2-Vane, Open
• Shaft: Corrosion Resistant Stainless Steel, Threaded
• Dual Mechanical Seal: 300 S.S. metal parts, Buna-N elastomers
• Upper Seal: Carbon (rotary) vs Ceramic (stationary)
• Lower Seal: Silicon Carbide vs Silicon Carbide
• Insulation: Class B
• Entry: Pressure Grommet for Sealing and Strain Relief
• Motor: Squirrel Cage Induction, Single Phase, 4 Poles, Oil-Filled, Permanent Split Capacitor

Model	Volts	Amps	HP	Watts	Max Flowrate	Max Head
80WQ0.37-4P	115V	8	1/2	920	11,880 gph	18'
	230V	4
80WQ0.55-4P	115V	11	3/4	1265	15,000 gph	23'
	230V	5.5
80WQ0.75-4P	115V	13	1	1495	15,840 gph	26'
	230V	6.5
80WQ1.1-4P	115V	16	1.5	1840	17,700 gph	32'
	230V	8
80WQ1.5-4P	230V	11.5	2	1495	18,480 gph	38'

Model	Flowrate, in gph, at Given Pump Head						Max Head
	5	10	15	20	25	30
80WQ0.37-4P	11,880	8,400	3,900	—	—	—	18'
80WQ0.55-4P	15,000	12,600	8,400	3,600	—	—	23'
80WQ0.75-4P	15,840	13,200	9,000	3,960	1,020	—	26'
80WQ1.1-4P	17,700	16,800	10,800	8,100	3,960	2,400	32'
80WQ1.5-4P	18,480	17,700	12,000	9,300	5,400	4,200	38'
