Parts for Sequence® Basket Strainer PurFlo (PF) 24170488 and 24170496
Sequence® medium-duty PF model strainer baskets are versatile accessories for external pump. They function both as leaf baskets and priming pots, protecting external pumps from debris and providing them with water for priming. Both ports are 2" male thread, and unions come included to adapt to 2" slip.
- PVC body
- ABS plastic or stainless steel internal basket
- Stainless steel clamps
- Buna O-rings

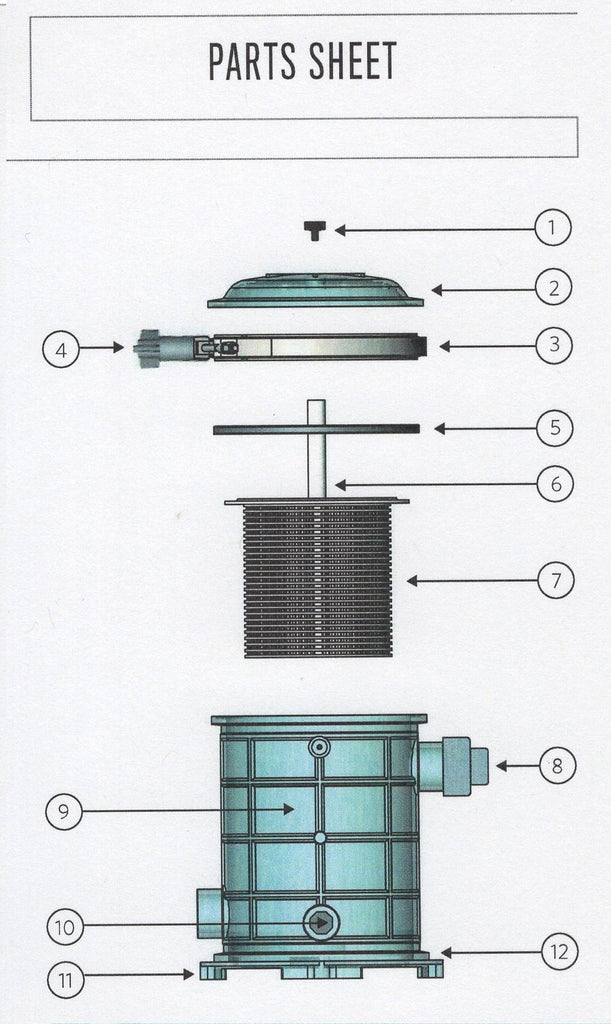

| # on Diagram | SKU | Description |

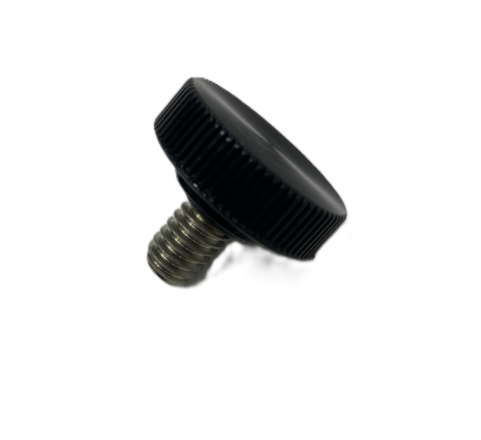

| 1 |
24170832 | Vent Screw |

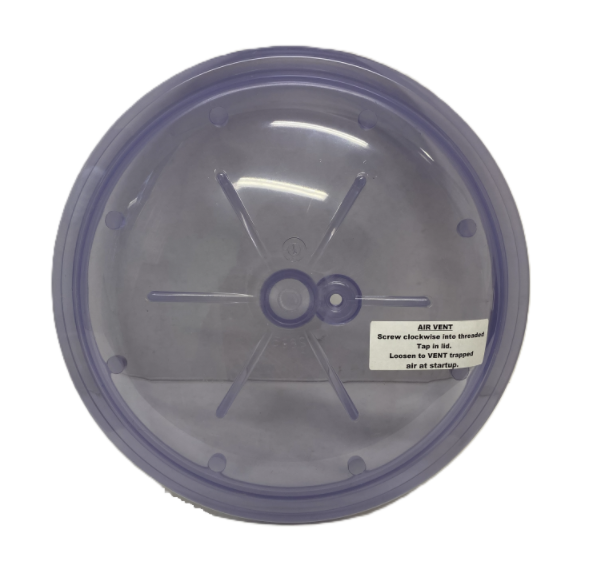

| 2 |
24171507 |
Lid |

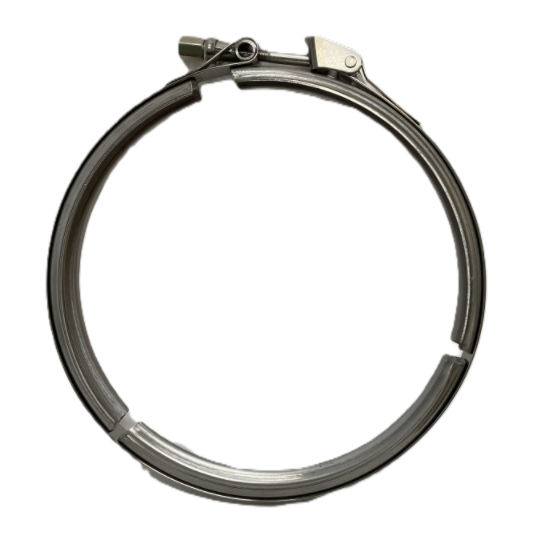

| 3 | 24170818 | Clamp Ring |

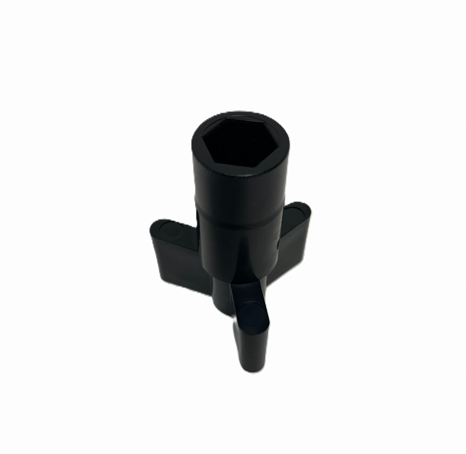

| 4 | 24170825 | Star Wrench |

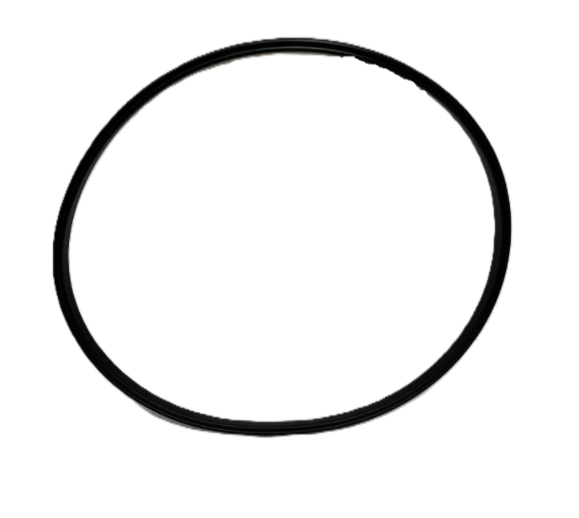

| 5 | 24170811 | EPDM Gasket |

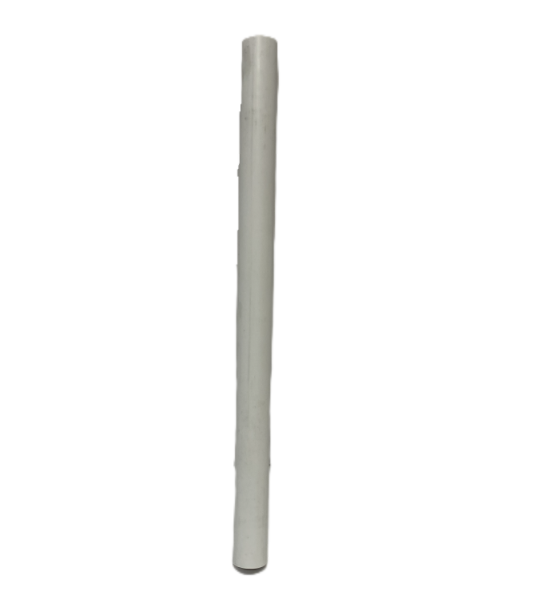

| 6 | 24171514 | PVC Hold-Down-Stem |

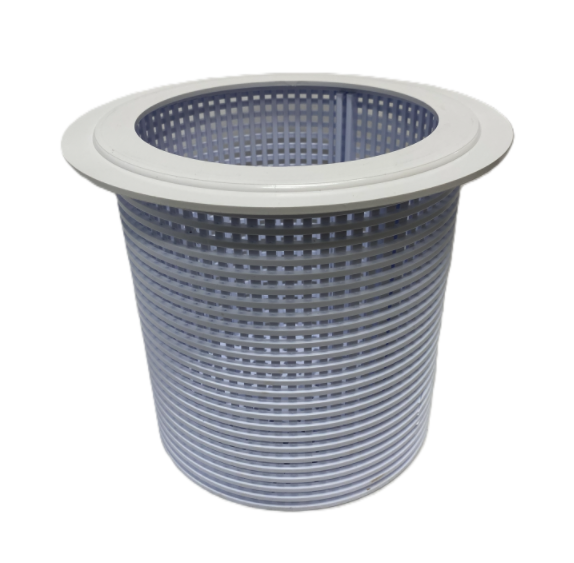

| 7 | 24170853 | ABS Basket (Standard) |
| 7 | 24170860 | Stainless Steel Basket |

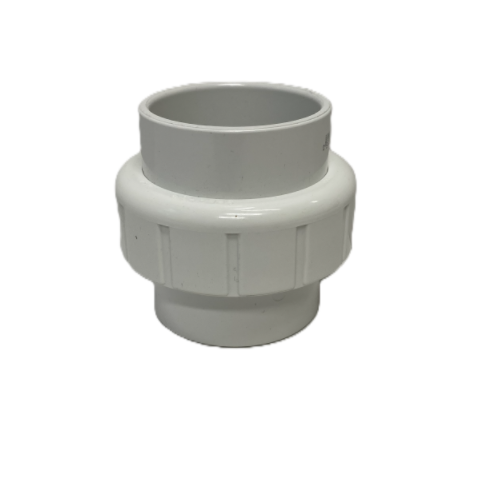

| 8 | 24170839 | 2" Union |

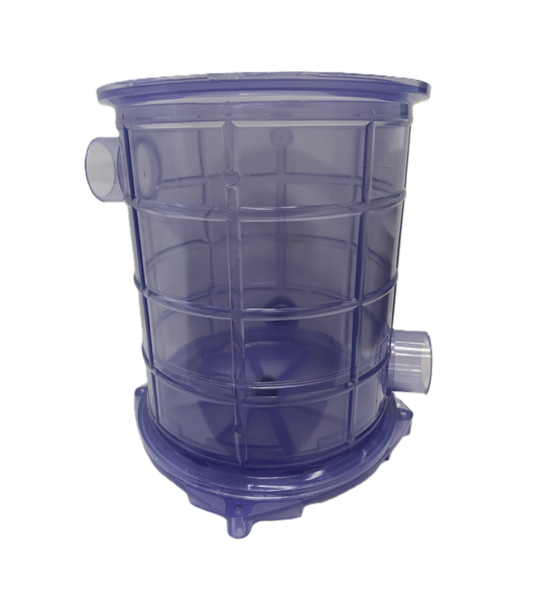

| 9 | 24171575 | Clear Body with Glued Base |
| 9 | 24171582 | Gray Body with Glued Base |
| 9 | 24171596 | Body Only (Clear - No Base) |
| 9 | 24171603 | Body Only (Gray - No Base) |

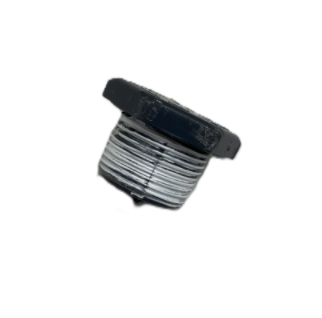

| 10 | 24171521 | 3/4" Drain Plug |
| 11 | 24170846 | Mounting Feet |
| 12 | 24171589 | Universal Clear Base |
