Compact Pre-Filter / Sieve for use with Bottom Drains and Pondless Water Features

Compact Pre-Filter / Sieve for use with Bottom Drains and Pondless Water Features
Compact Pre-Filter / Sieve for use with Bottom Drains and Pondless Water Features Compact Pre-Filter / Sieve for use with Bottom Drains and Pondless Water Features Compact Pre-Filter / Sieve for use with Bottom Drains and Pondless Water Features Compact Pre-Filter / Sieve for use with Bottom Drains and Pondless Water Features

Russell

$619.99
SKU: HSBD

Pond Sieve Filter Features:

  • Made in the USA
  • Flow rates to 5,700 gph (95 gpm)
  • Space saving design - 25" tall x 17" diameter
  • Filters down to 100 microns
  • 4" inlet, 4" outlet
  • Easy to Install

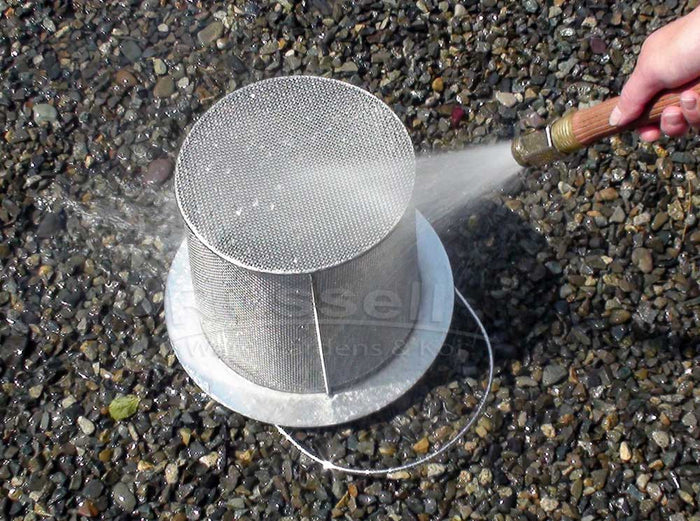

  • Easy to Clean
  • For use as a dedicated Bottom Drain pre-filter for Koi ponds, Hybrid Ponds™, and CrossOver™ Ponds instead of direct connection to a pump or pond skimmer
  • For use as a pre-filter for Ultimate Pondless Waterfall Systems
  • Remote installation capable - can be installed away from the pond or pondless edge

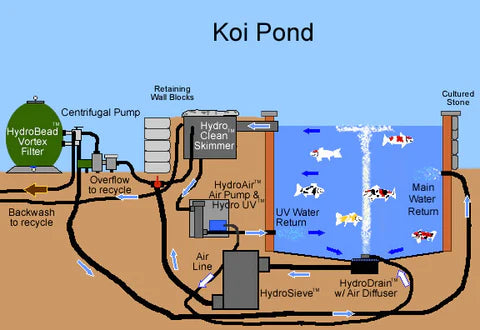

  • Connects between bottom drain and centrifugal pump when used for bottom drain pre-filtering in pond installations
  • Connects in front of the HydroChamber™ when used in Ultimate Pondless applications

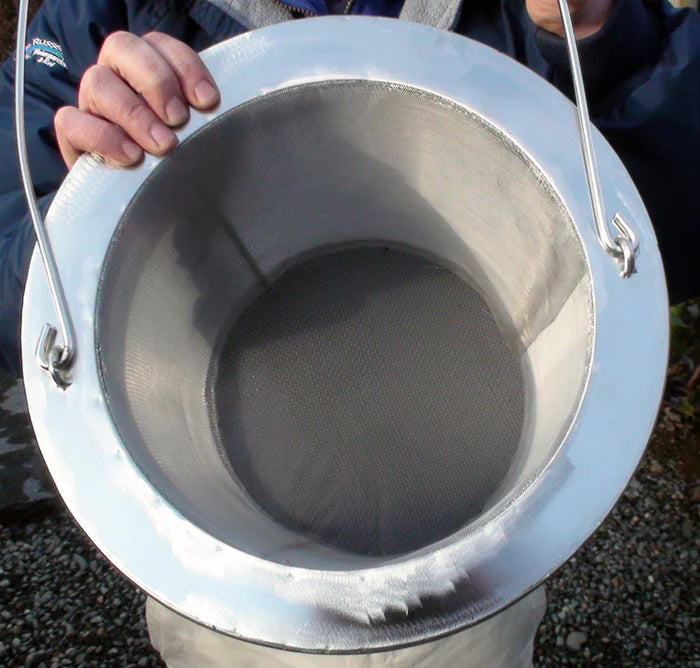

  • Heavy Duty 316 stainless steel debris basket and handle
  • 316 Stainless Steel micro-screen
  • Micro filters down to single grains of sand and human hair
  • Heavy duty HDPE rotationally molded housing
  • Heavy duty HDPE rotational molded lid
  • Unique design accommodates up to 6" of water level fluctuation to allow for water changes without starving the pump for water
  • Completely reliable and simple to install
  • Can also be used to pre-filter roof and landscape drains for water recycling
  • Connects to 4" PVC or ABS piping with a simple rubber coupler
  • Connects to 3" PVC or ABS piping with a simple rubber reducer coupler



For koi ponds: This compact pond sieve pre-filter captures fish waste and debris from koi pond bottom drains for easy removal. Placed before the pump, it improves the overall health and appearance of the pond by keeping the pump from passing fish waste and debris to the biological filter, maximizing bio-filtration efficiency.

For pondless water features: This compact pond sieve pre-filter captures debris for easy removal from pondless water features. Removing debris from pondless waterfall features naturally reduces algae growth and helps maintain clean, clear water.

4" Pipe Remote Installation guidelines:
1,800 gph pump flow rate ÷ 500 = 3.6' maximum remote installation distance.
2,700 gph pump flow rate ÷ 500 = 5.4' maximum remote installation distance.
3,500 gph pump flow rate ÷ 500 = 7' maximum remote installation distance.
