Sequence® Alpha Primer Pump Replacement Parts
The following replacement parts fit the Sequence® Alpha Primer External Pumps (6800PRM19, 7800PRM24).
Note: 7200PRM23 is the former model number for 7800PRM24 pumps and the parts are interchangeable.
Part No. |
Description | Compatible Pumps |
1000.0414 | Freshwater / Saltwater Seal | Alpha Primer Pumps |

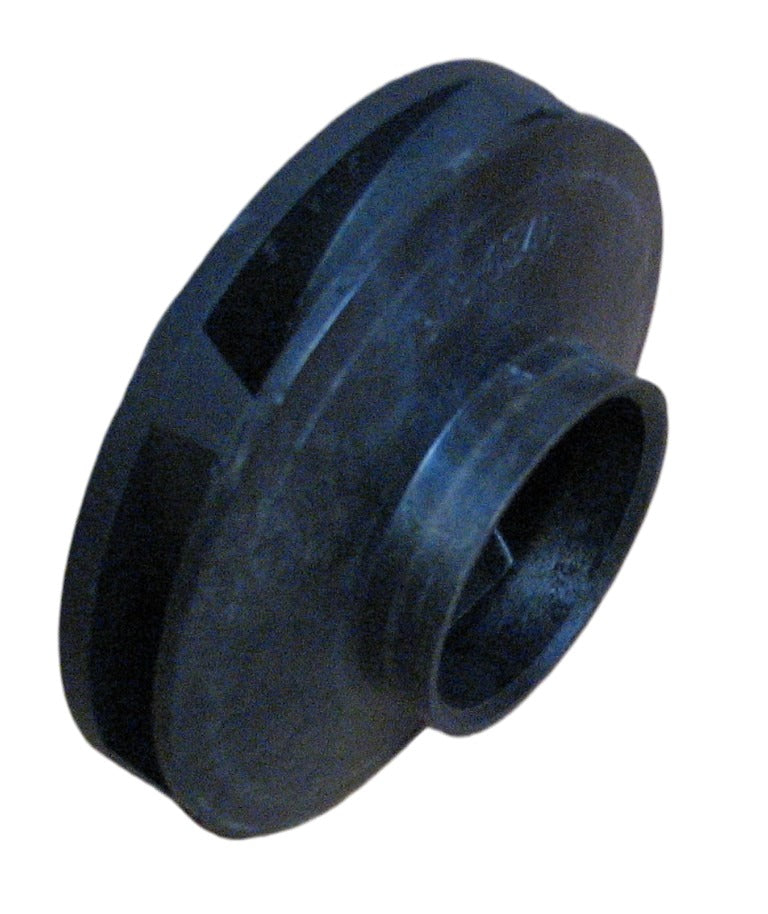

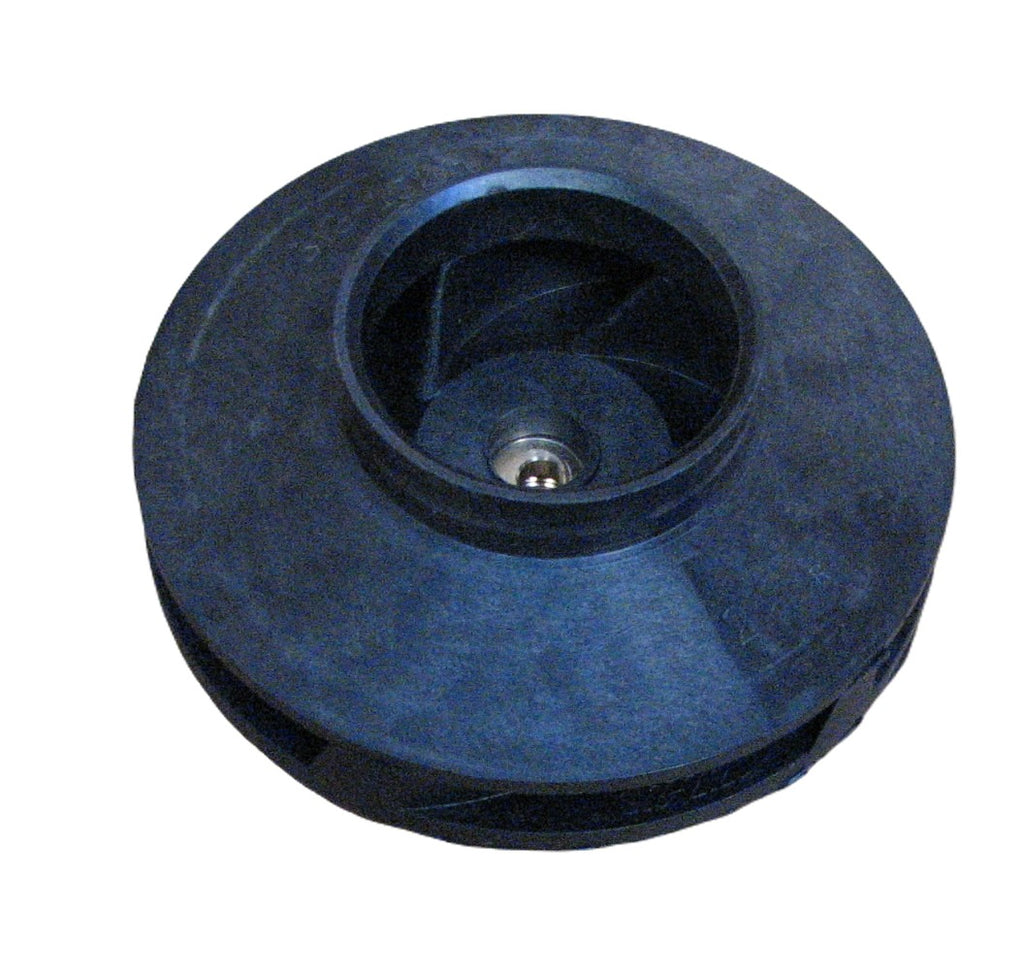

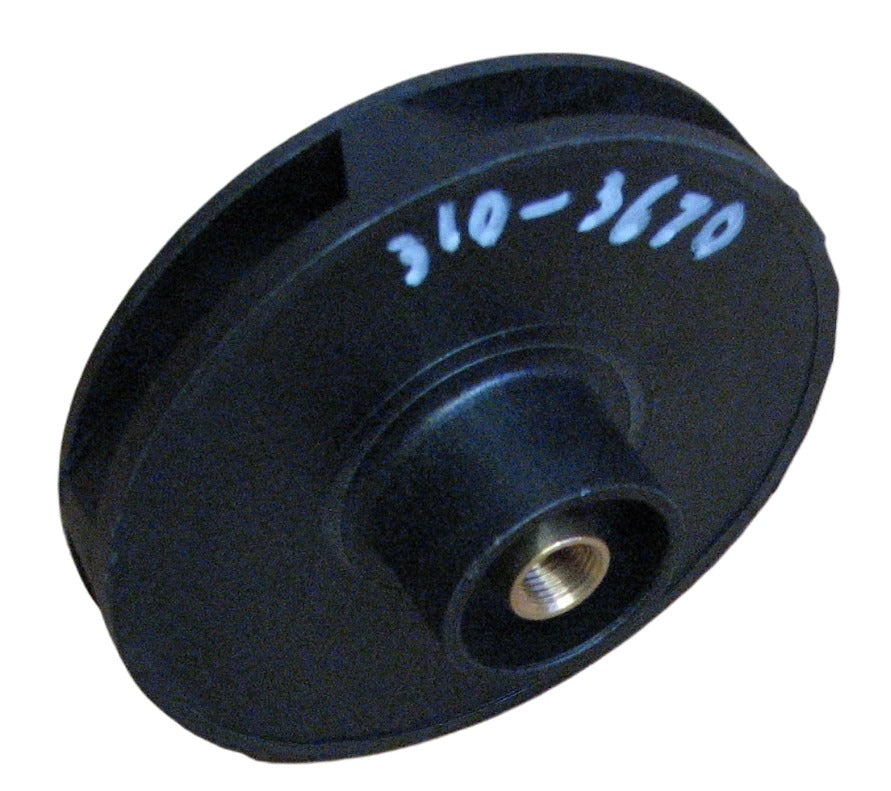

310-3670 | Impeller | 6800PRM19 |

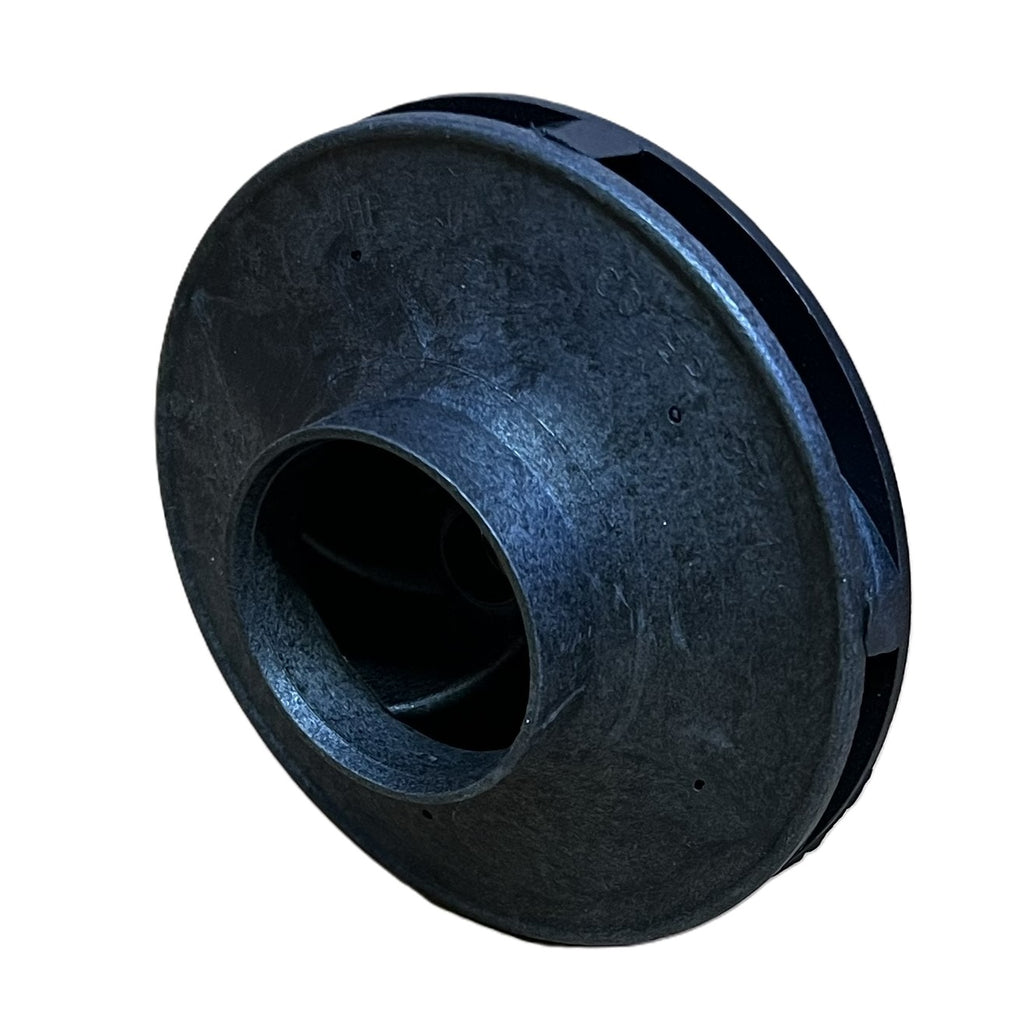

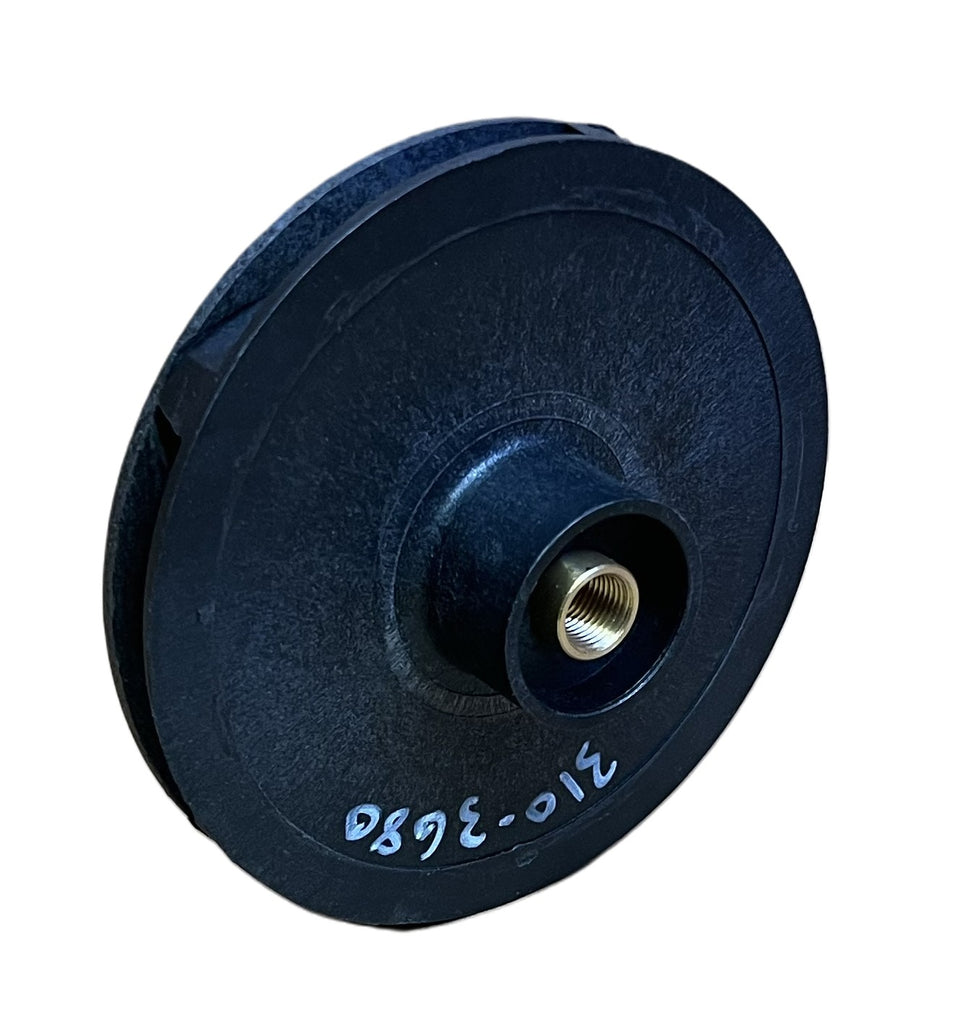

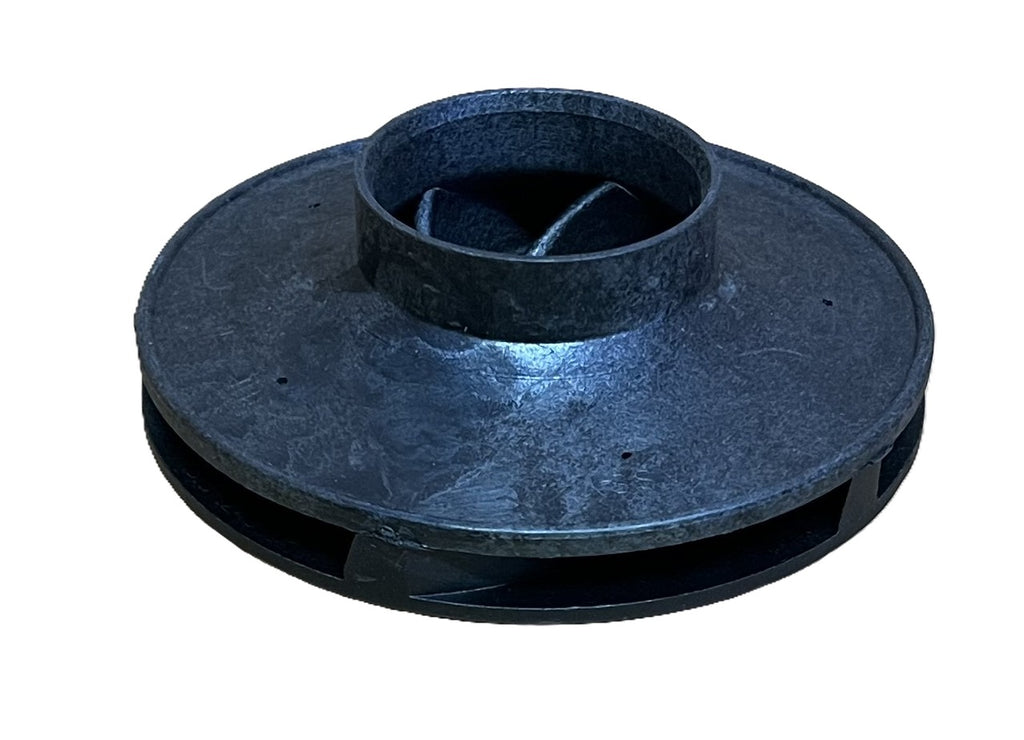

310-3680 | Impeller | 7800PRM24 |
715-1201 | Drain Plug | Alpha Primer Pumps |
805-0112 | O-Ring for Drain Plug | |

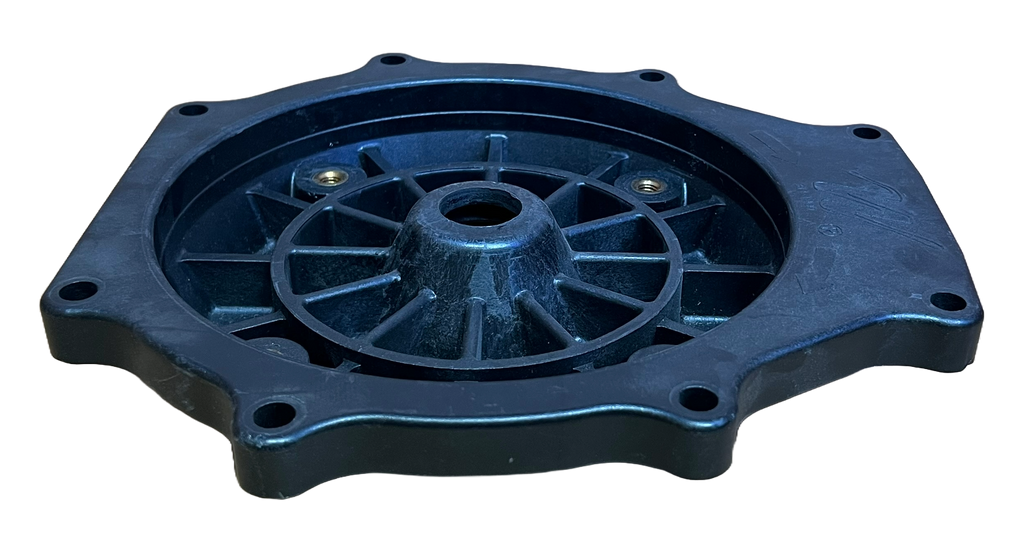

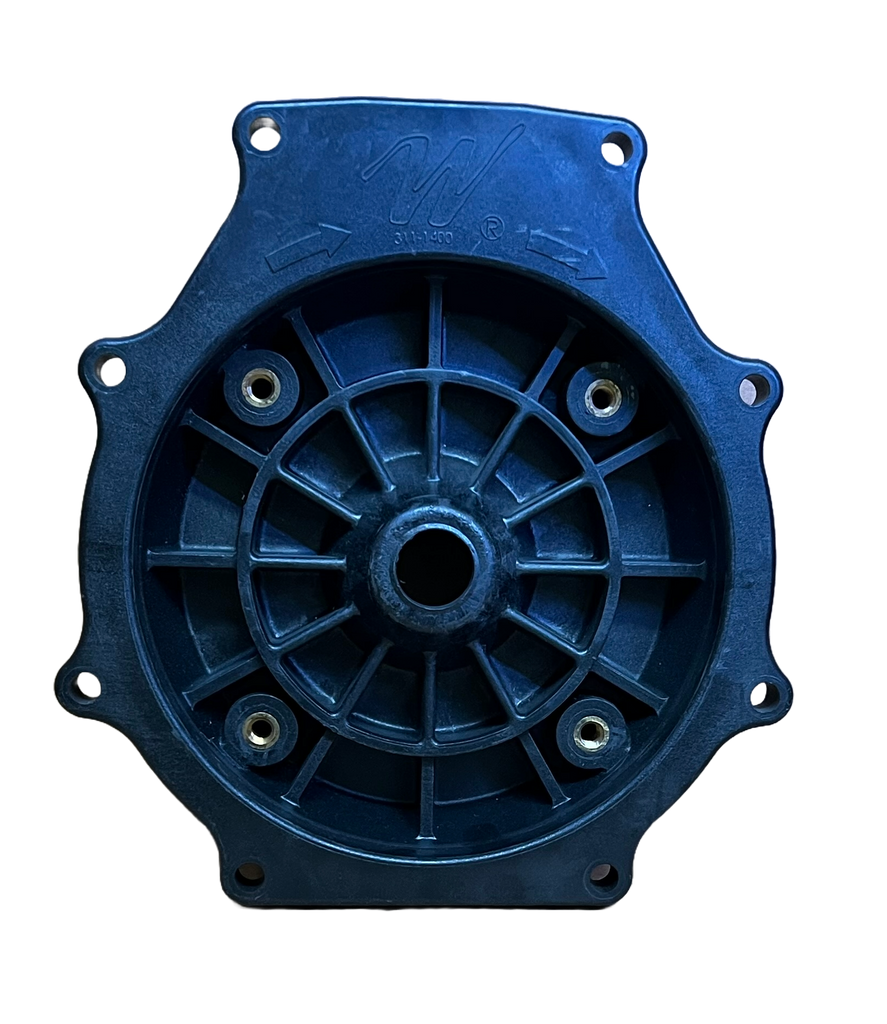

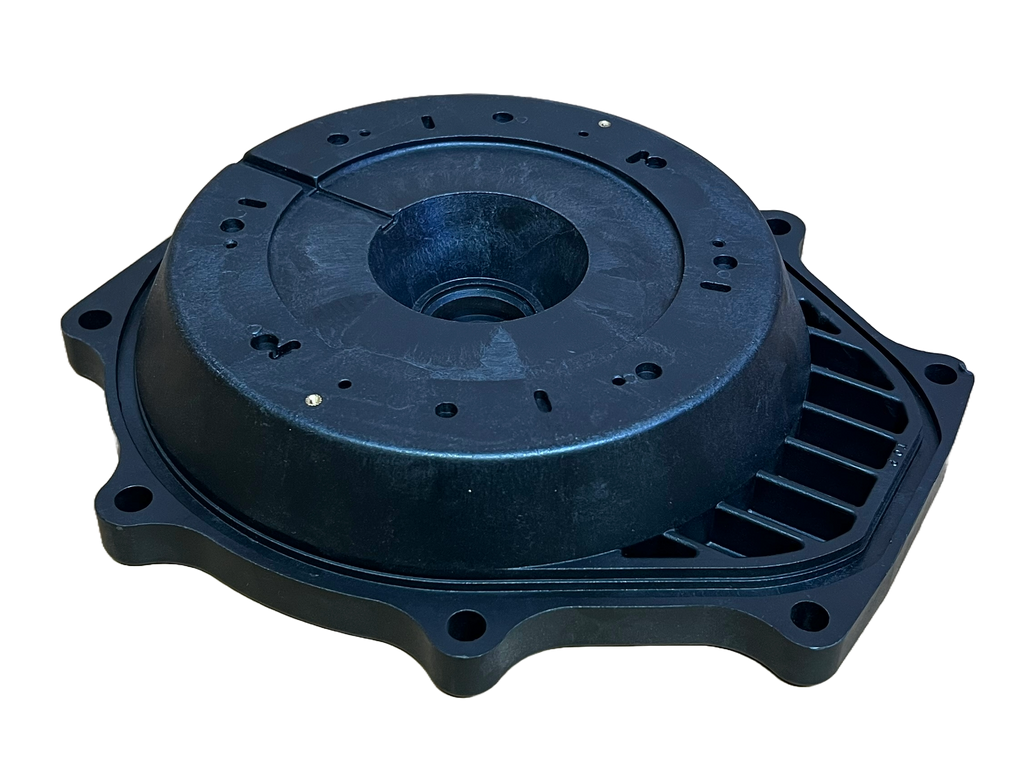

9000.030 | Bracket | |
9000.050 | Impeller Screw | |

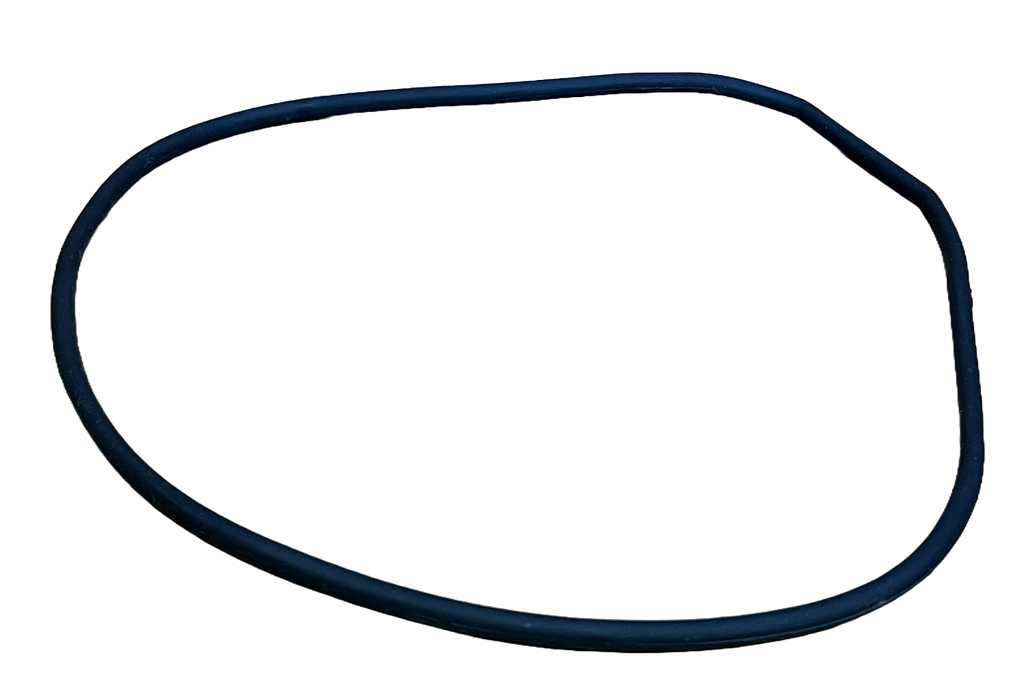

9000.061 | Large O-Ring | |

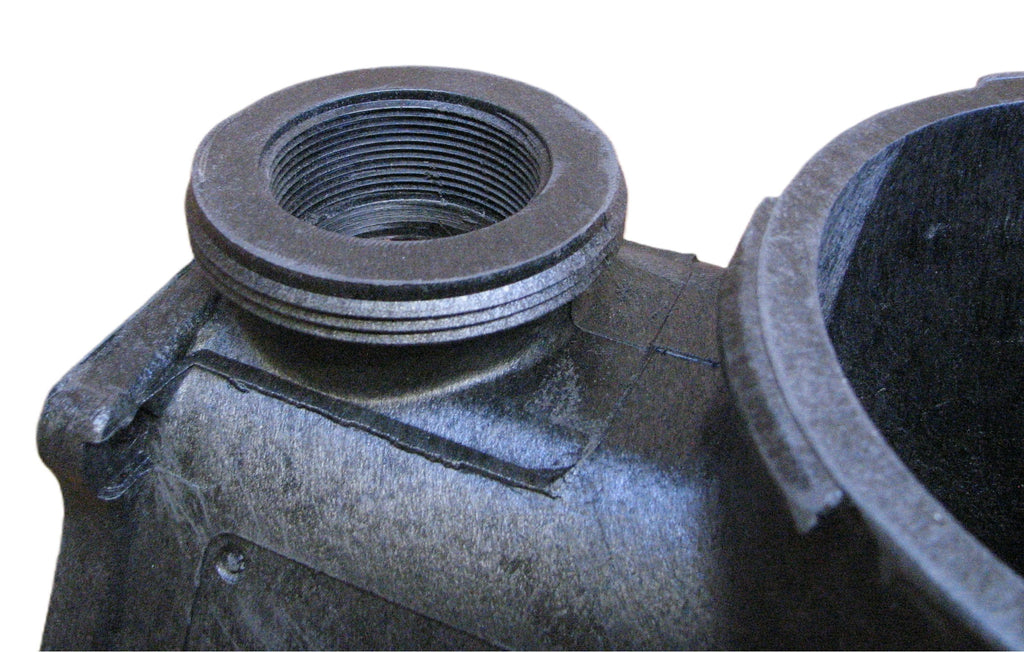

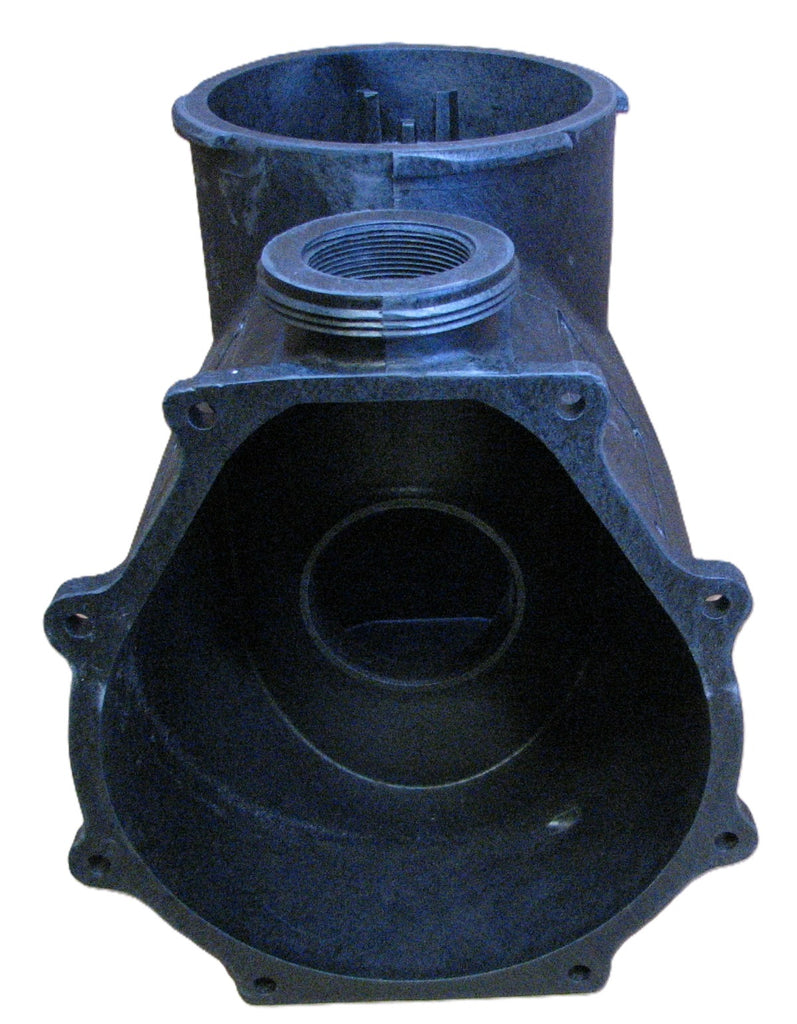

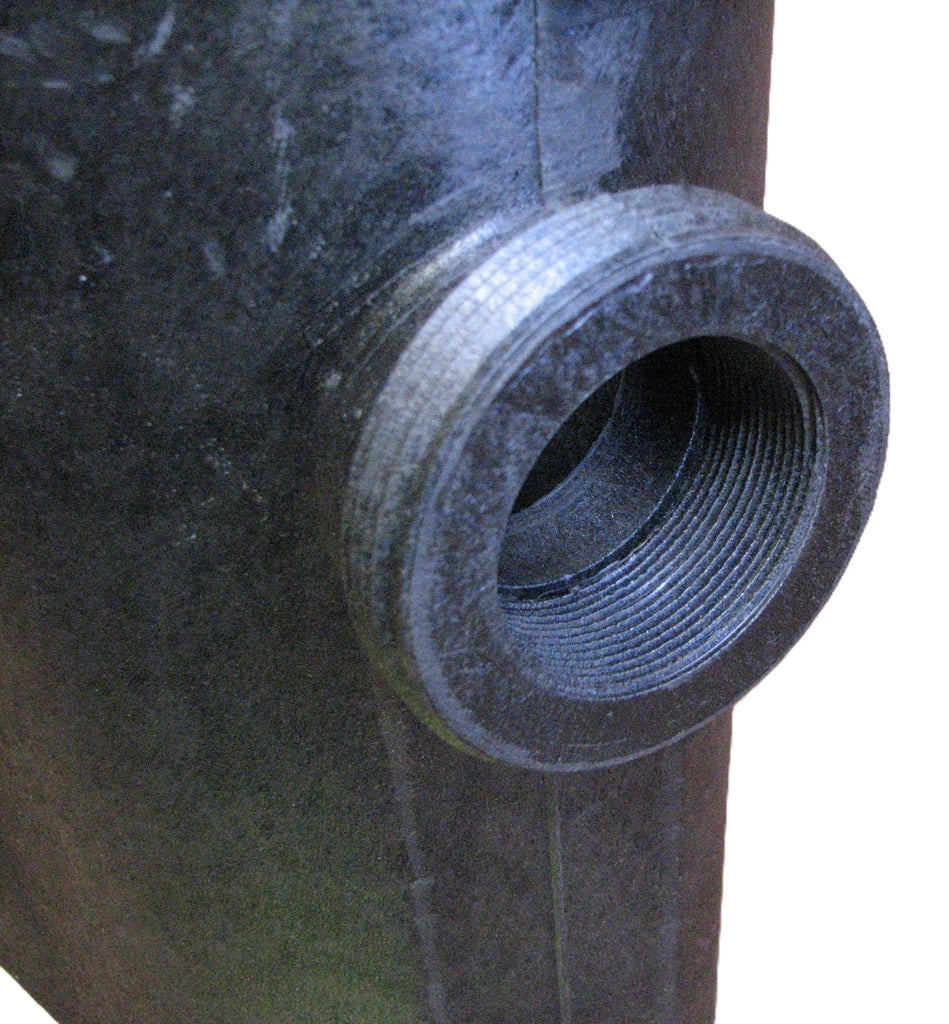

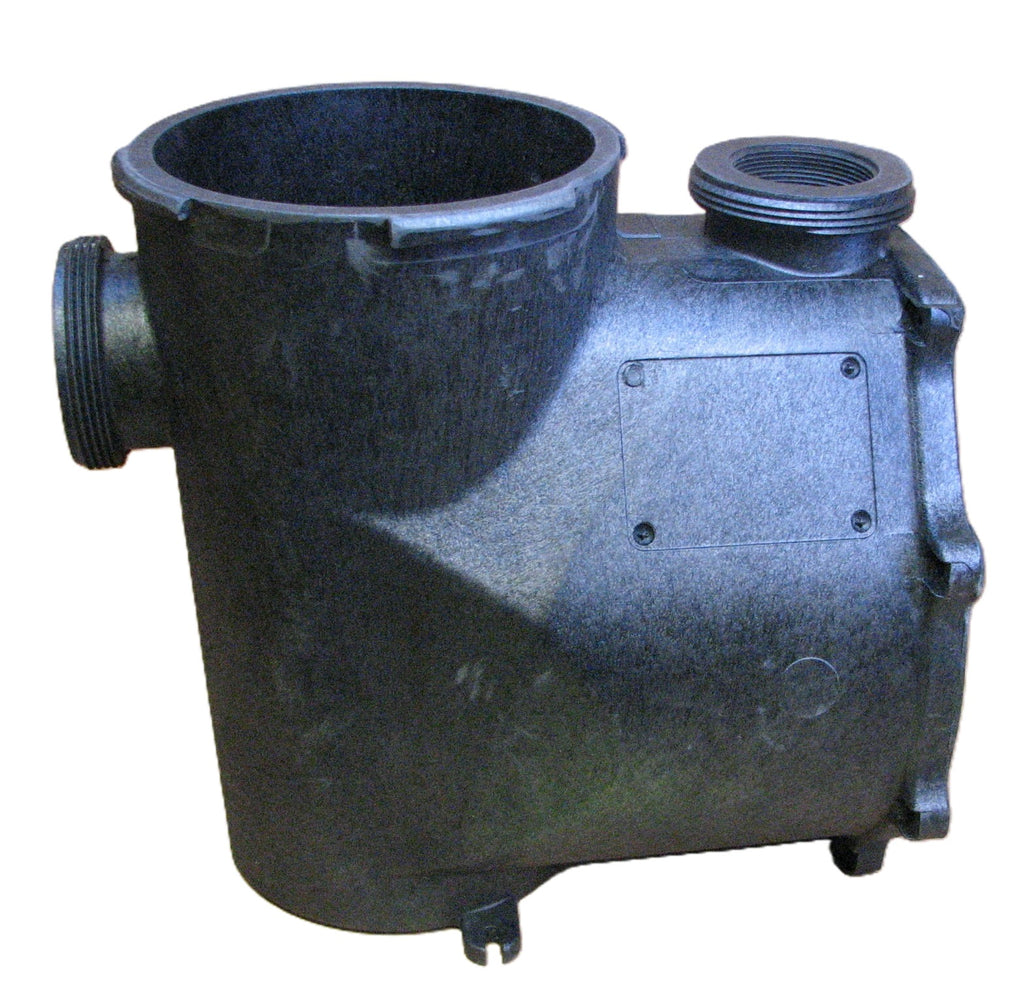

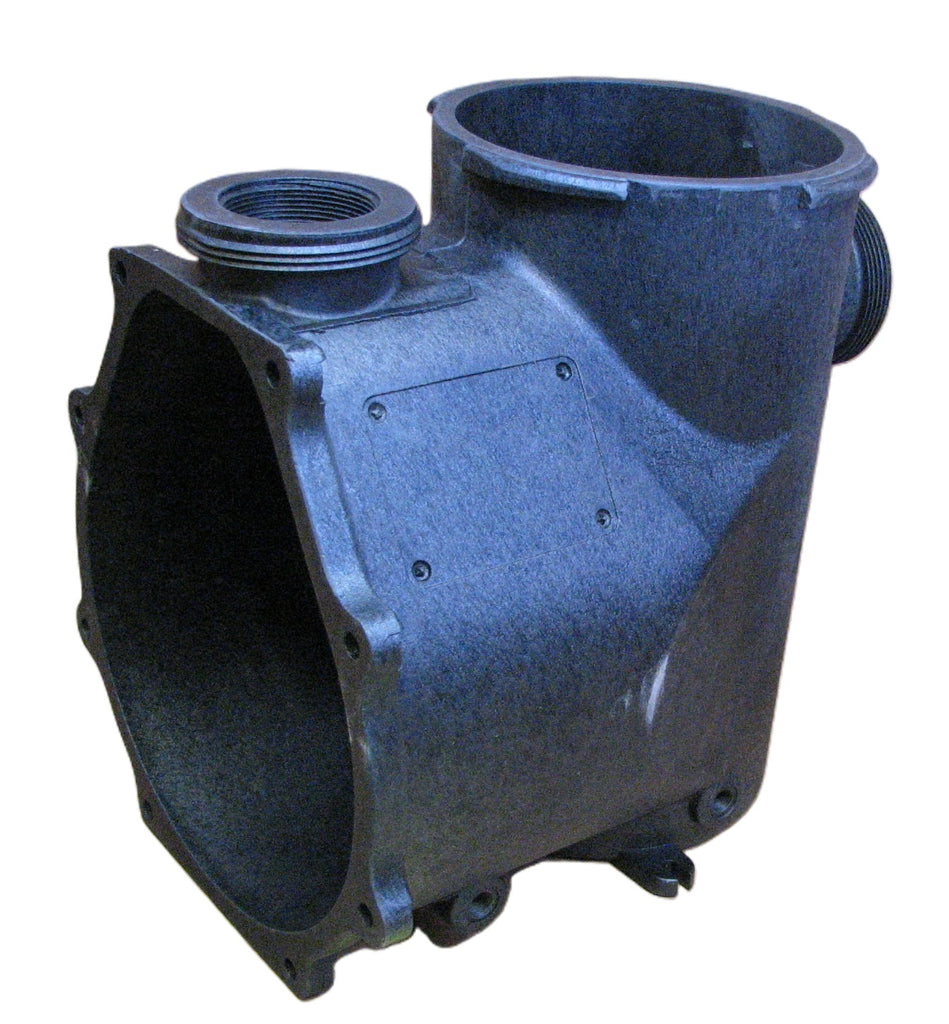

9000.070 | Volute/Casing | |

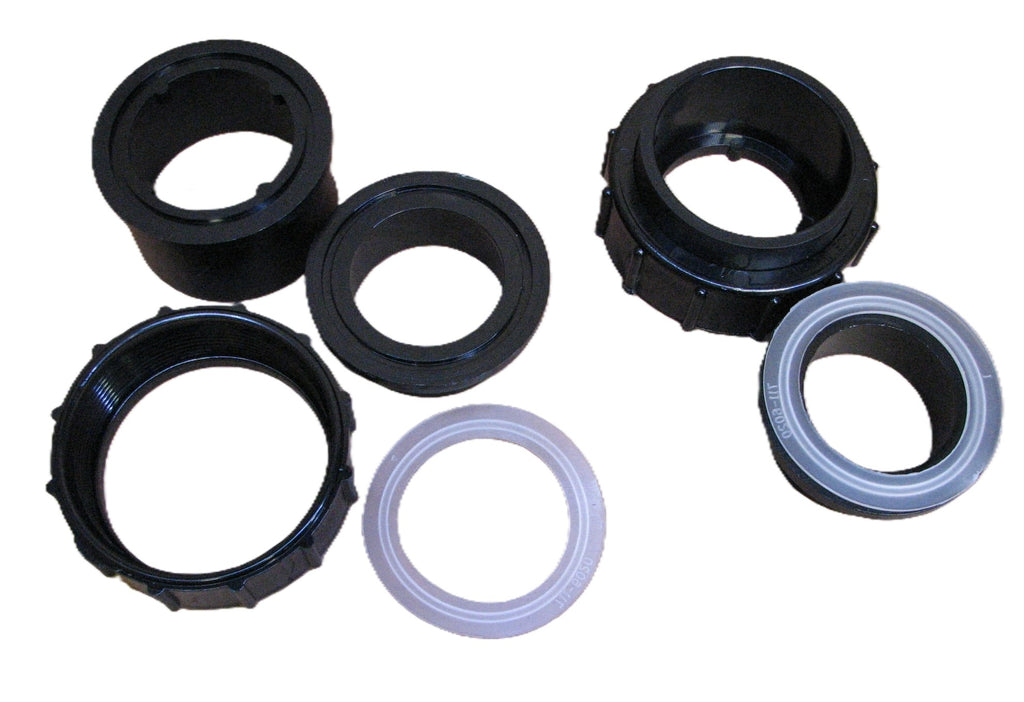

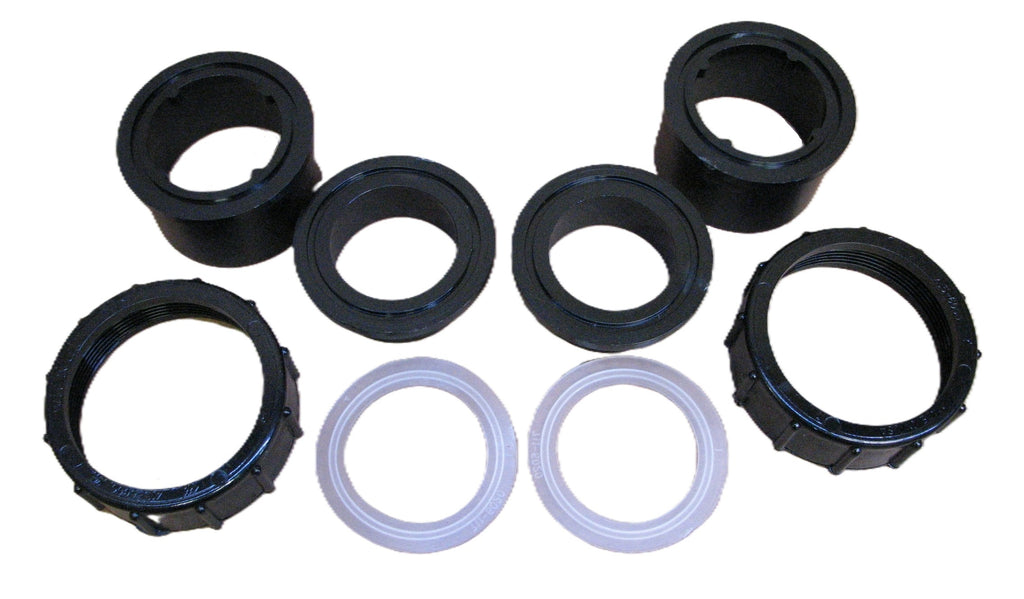

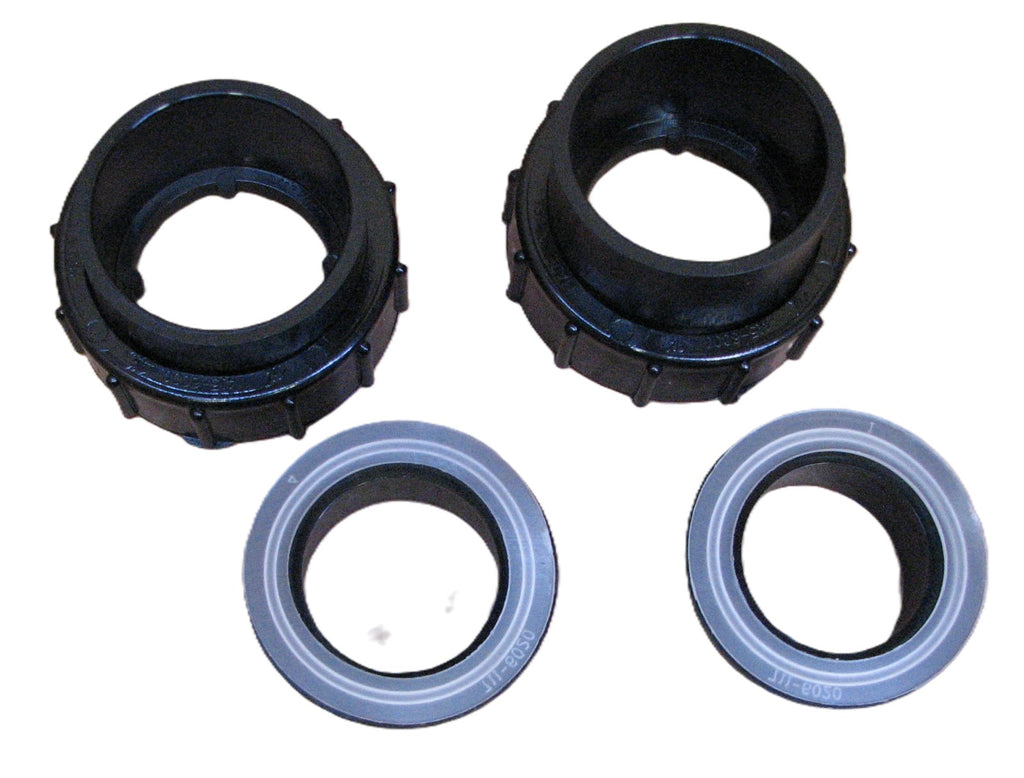

9000.070-2 | Intake Union & Discharge Union Adapters (set of 2) | |

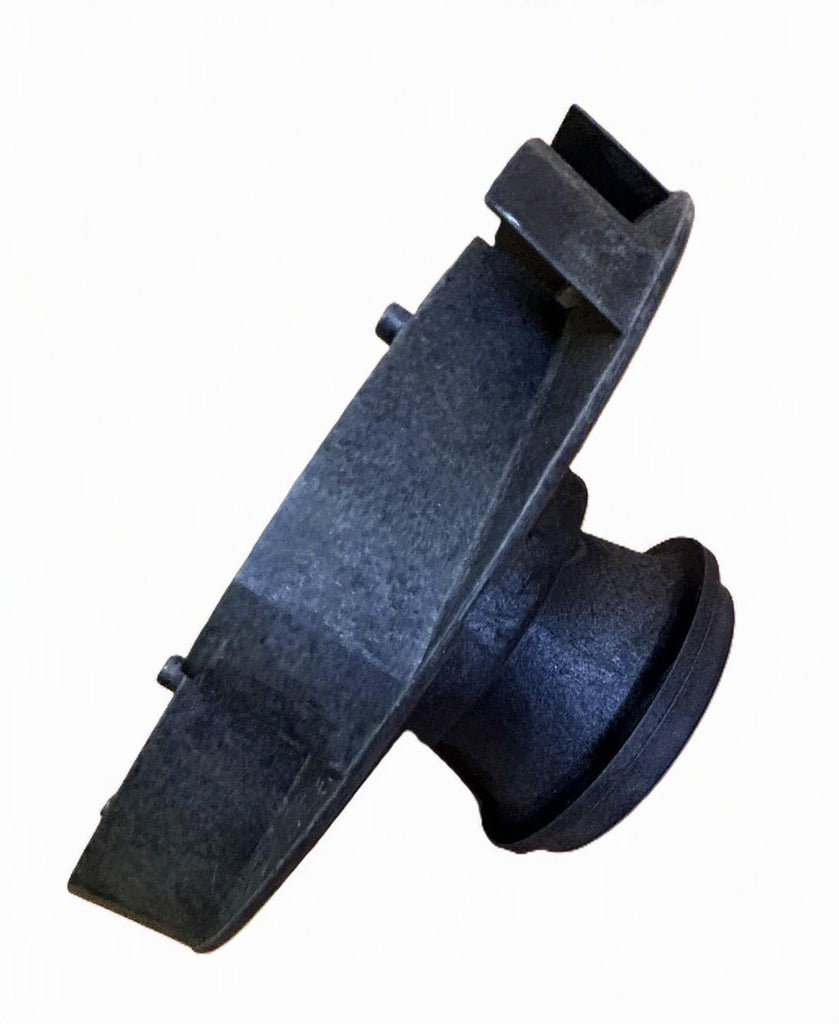

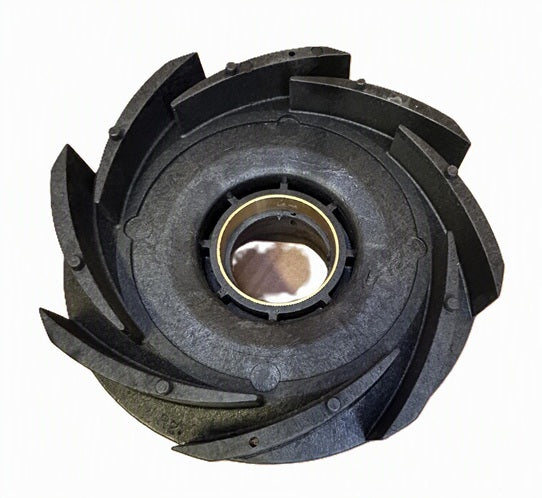

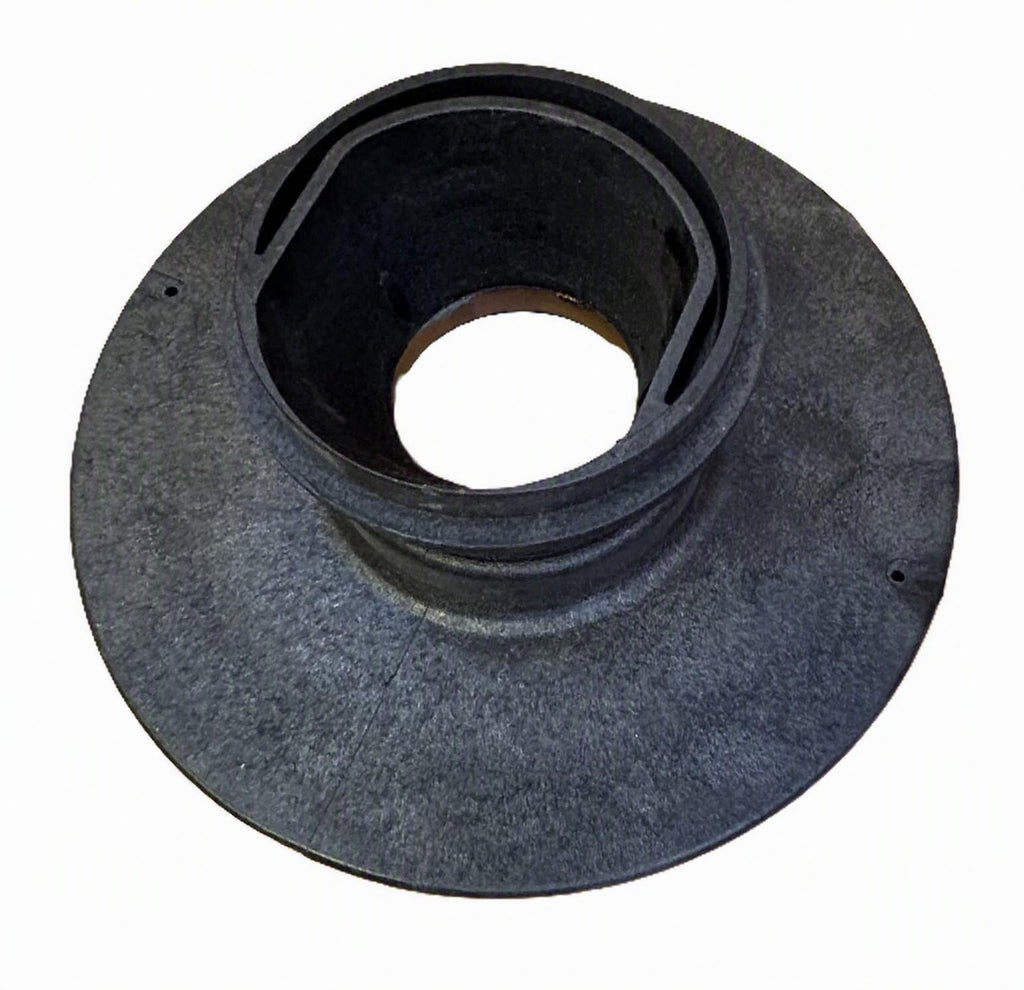

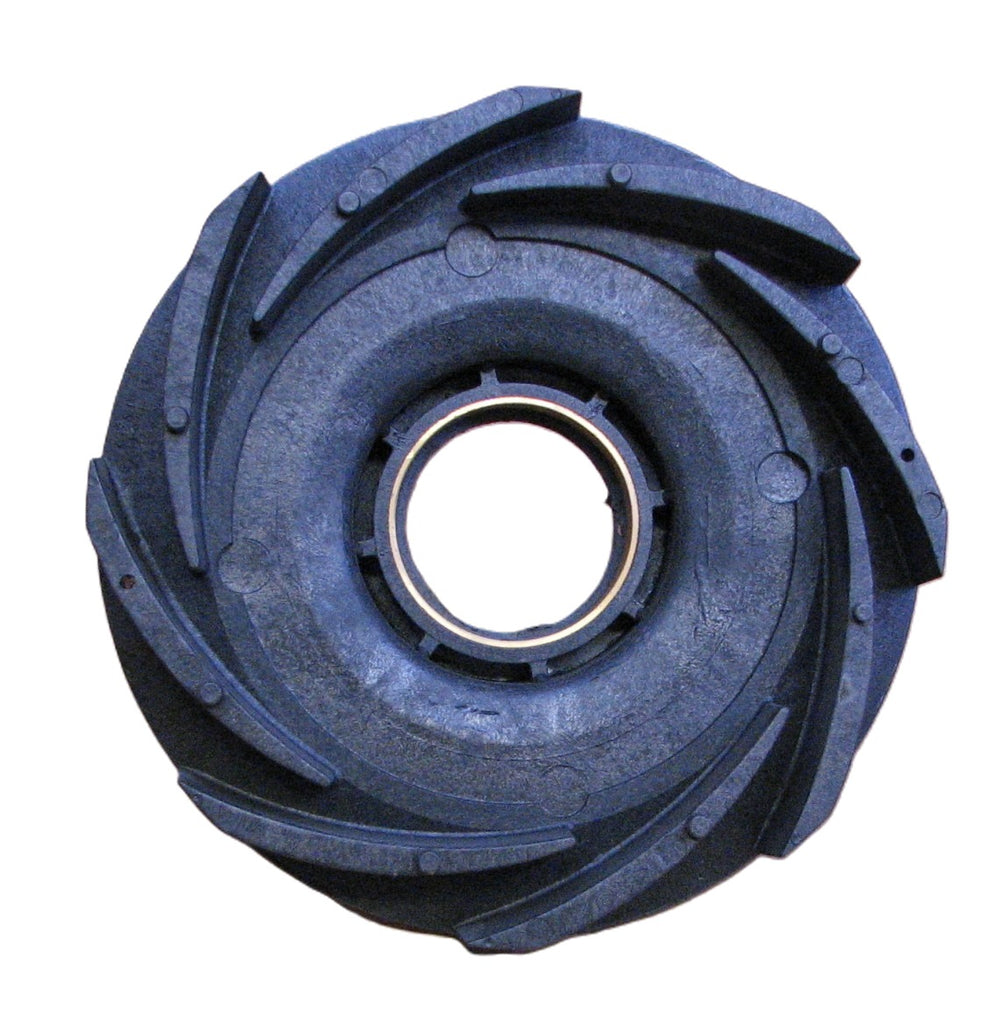

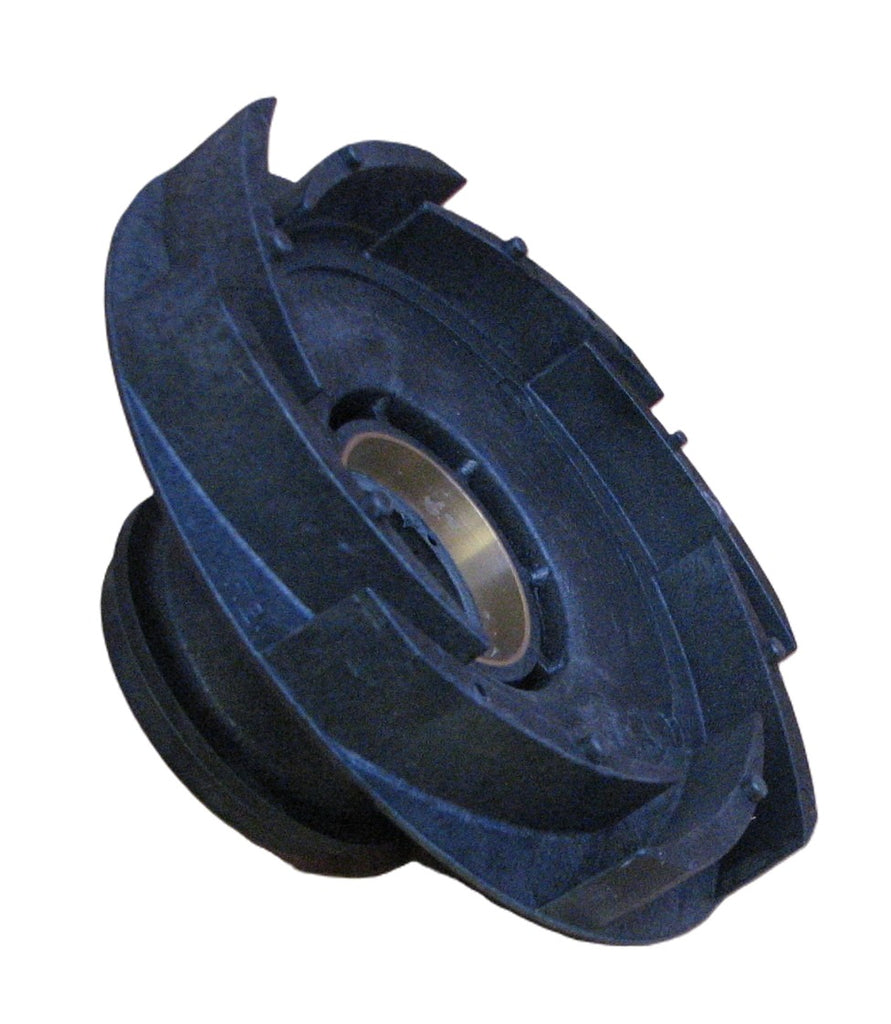

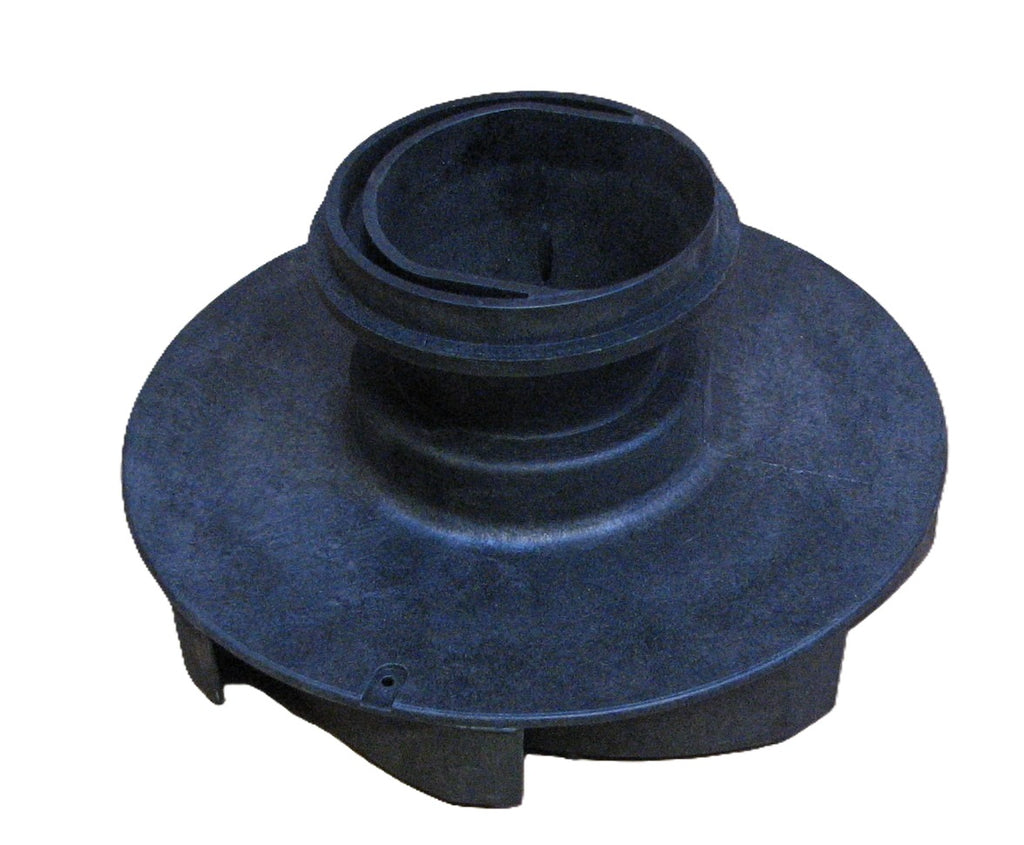

9000.120 | Diffuser | |

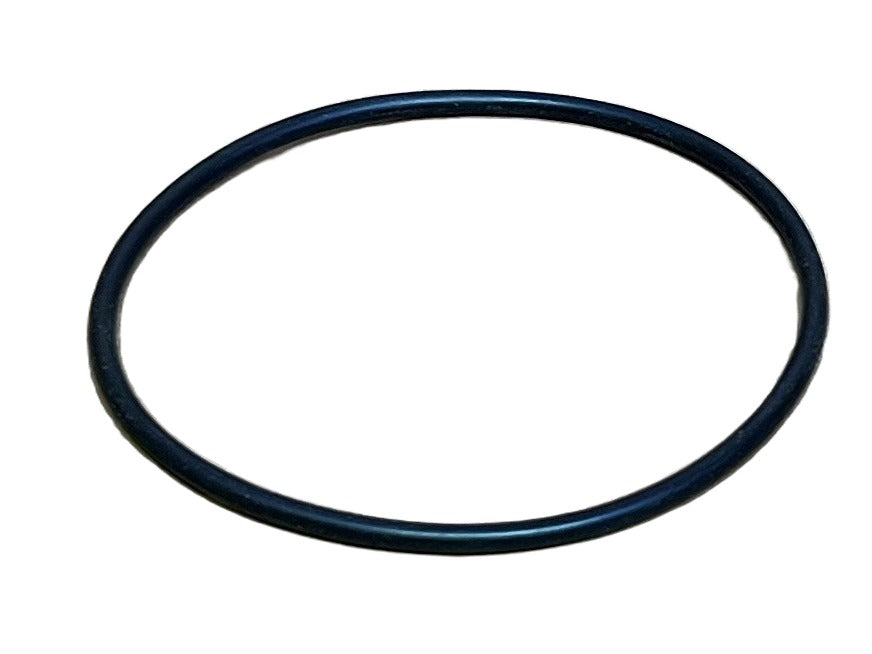

9000.121 | Diffuser O-Ring | |

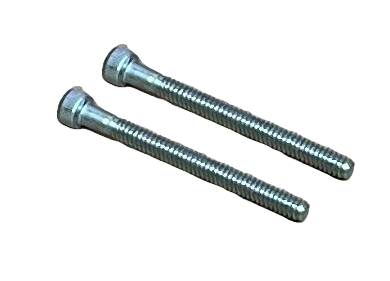

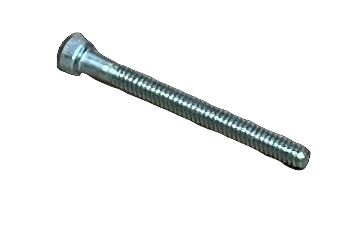

9000.122 | Diffuser Screws, 2pc | |

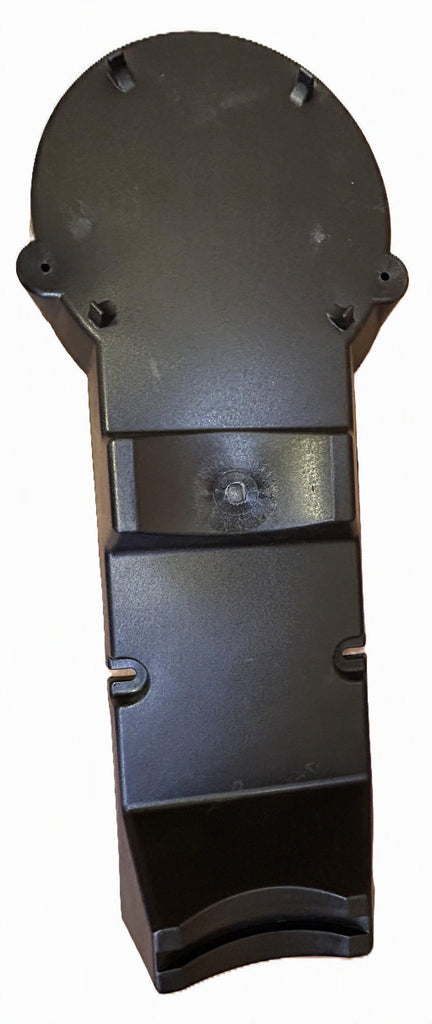

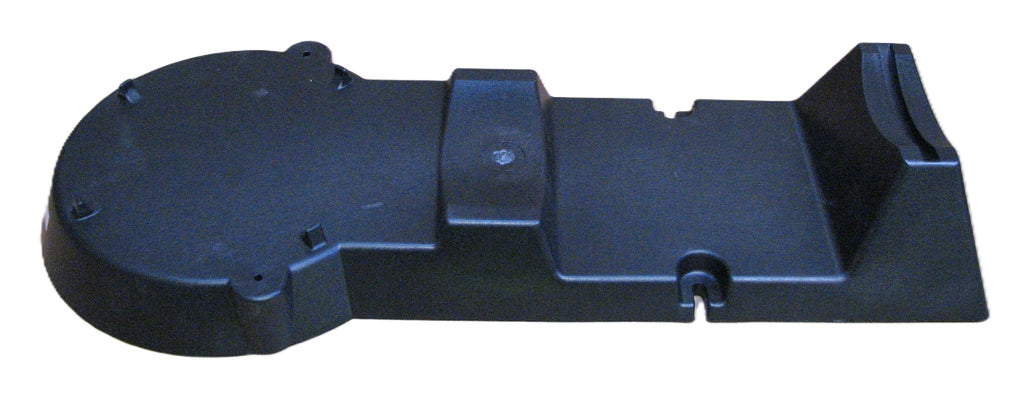

9000.751 | Base | |
9000.777 | Lid O-Ring | |

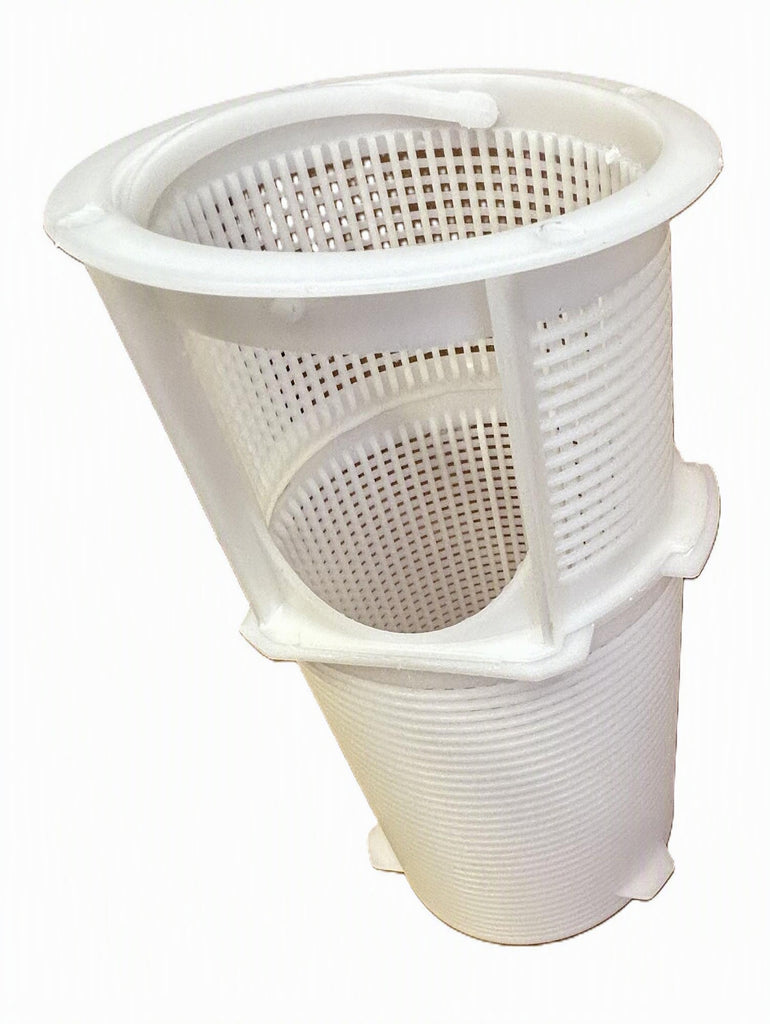

9000.778 | Strainer Basket | |
9000.779 | Lid | |

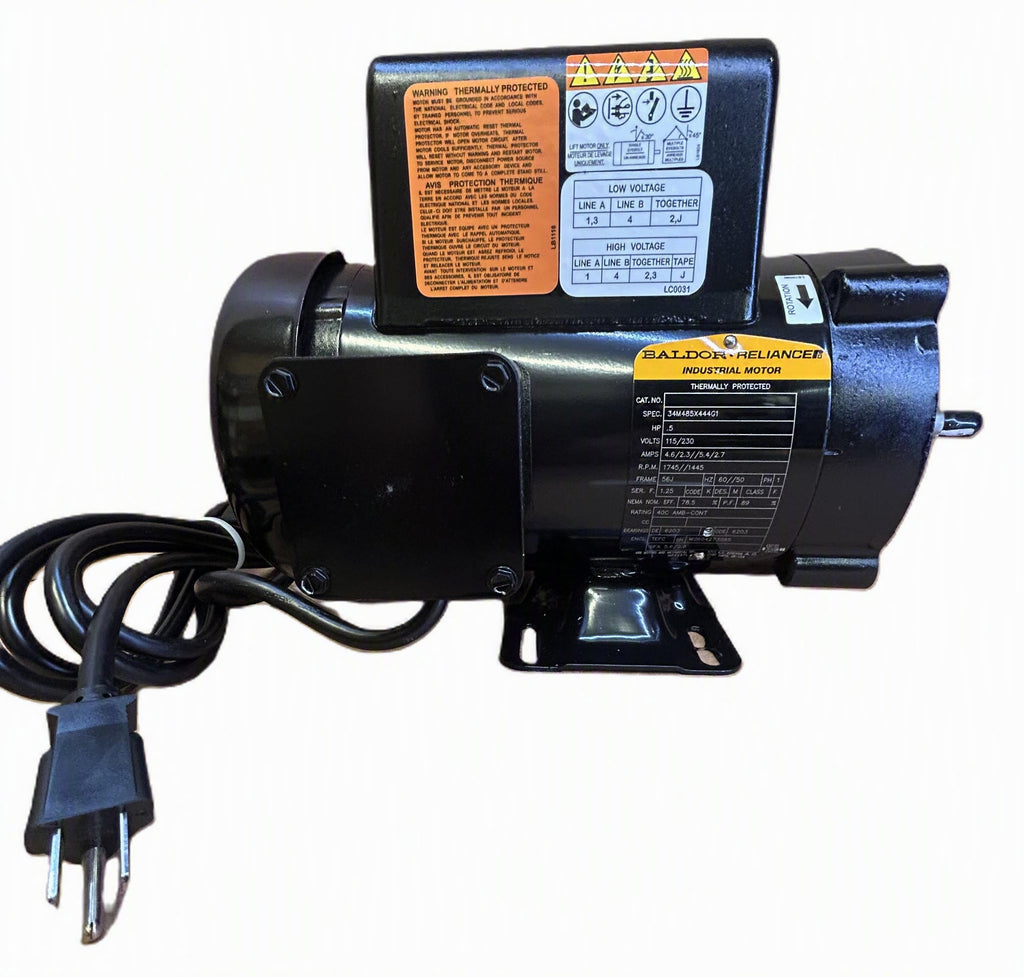

M1360 | Replacement Motor |
