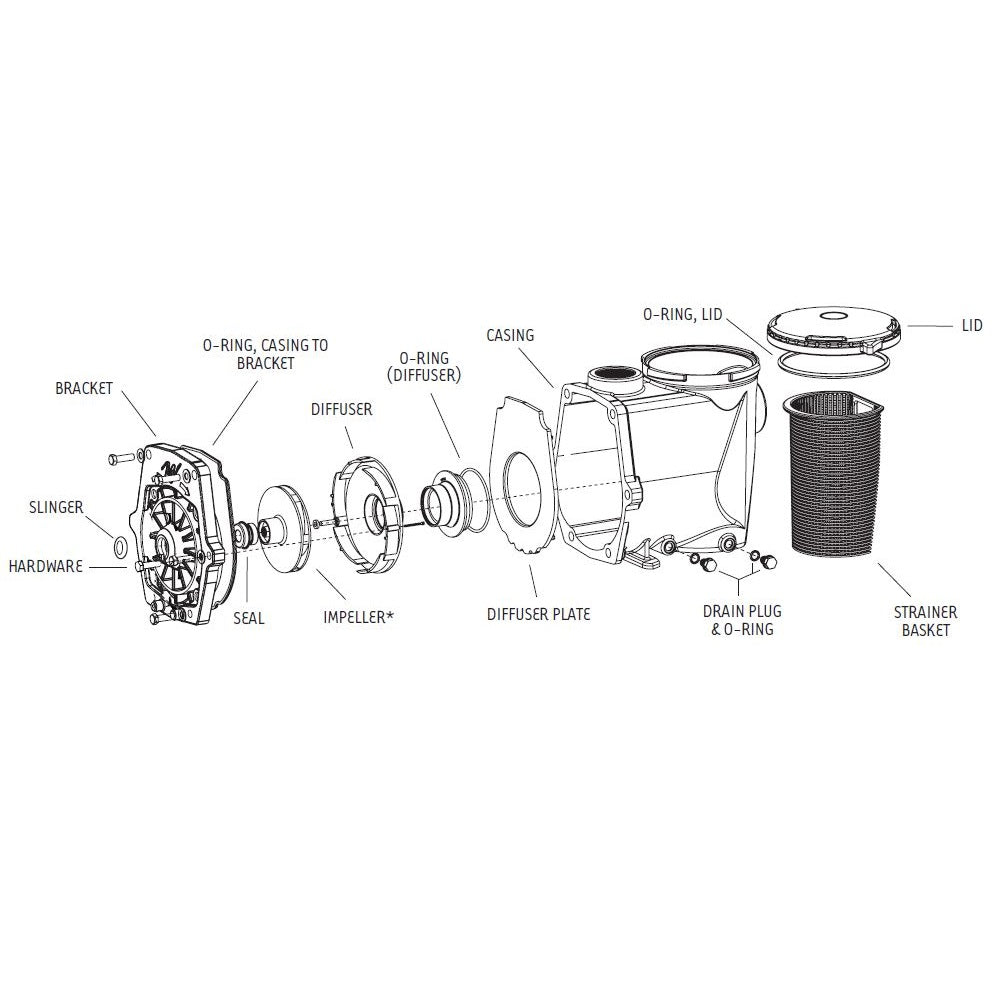

Sequence® Champion Primer & Power Primer Pump Replacement Parts
The following replacement parts fit Sequence® Primer Champion external pumps (3700PRM21, 4900PRM21, 6600PRM24) AND Sequence® Power Primer external pumps (6300PRM77, 8100PRM81, 9300PRM83).
|
Part No. |
Description | Compatible Pumps |
| 1000.0411 | Fresh Water Seal | Primer Champion / Power Primer Pumps |

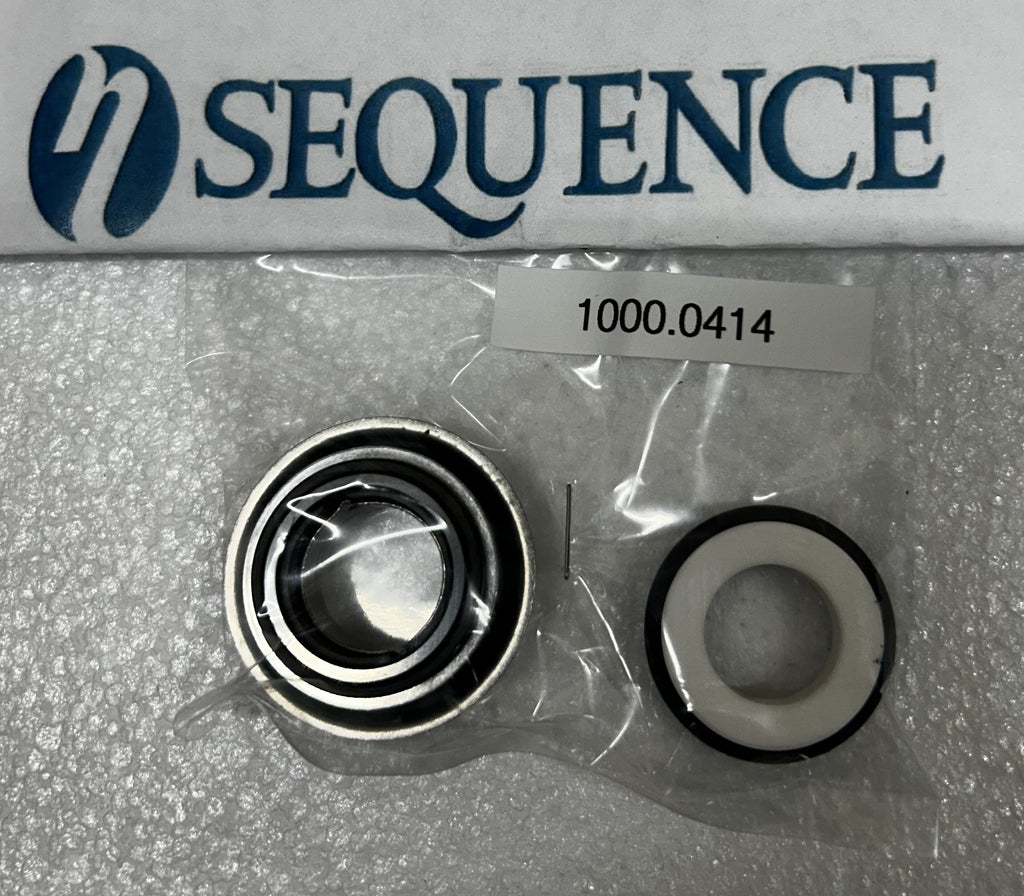

| 1000.0414 | Salt Water Seal | |

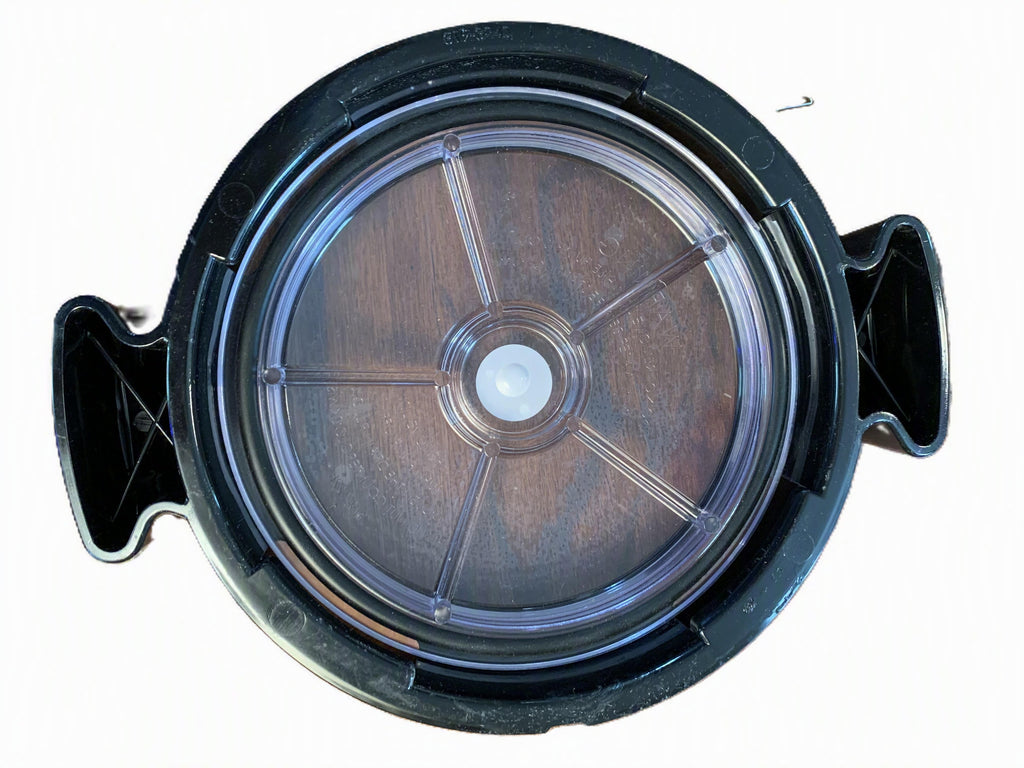

| 1000.771-L | Lid | |

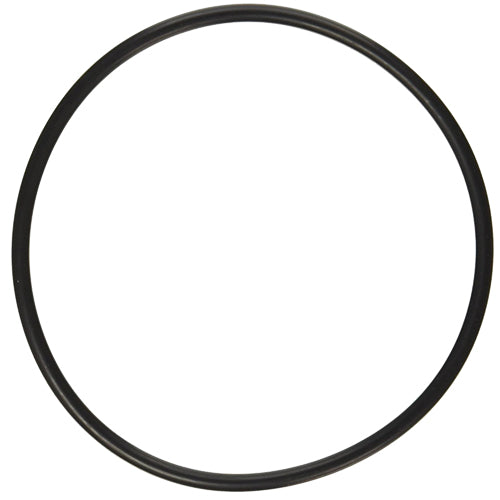

| 1000.771-O | Lid O-Ring | |
| 310-7410 | Impeller | 3700PRM21, 6300PRM77 |
| 310-7420 | Impeller | 8100PRM81 |
| 310-7430 | Impeller | 4900PRM21, 9300PRM83 |
| 310-7450 | Impeller | 6600PRM24 |
| 319-1500 | Base | Primer Champion / Power Primer Pumps |
| 8000.030 | Bracket | |
| 8000.061 | Large O-Ring | |
| 8000.070 | Volute | |
| 8000.120 | Diffuser | |
| 8000.121 | Diffuser O-Ring | |
| 8000.141 | Diffuser Plate | |
| 8000.778 | Strainer Basket | |
| 819-0018 | Diffuser Screws, 2pc | |
| 819-4360 | Impeller Screw | |
| M1360 | Motor | Primer Champion Pumps |
| M3431 | Motor | Power Primer Pumps |
