Sequence® Titan Pump Replacement Parts
The following replacement parts fit the Sequence® Titan pumps (12000SEQ21, 1800SEQ45, 31500SEQ180).
|
Part No. |
Description |
| E024B70 | Impeller Cap O-Ring, Buna |
| E024V70 | Impeller Cap O-Ring, Viton® |

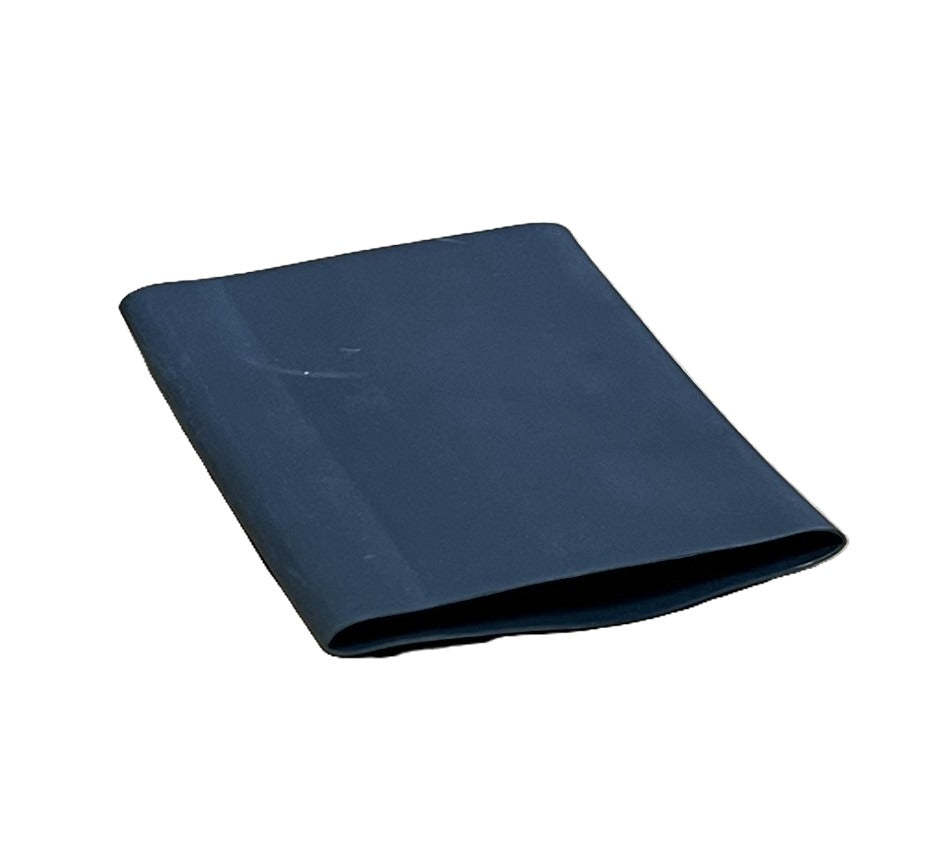

| EPS-200 | Motor Shaft Protective Sleeve |
| G1.0423 | Impenatra® II Seal, Carbon-Graphite/Viton®/Silicon Carbide |
| G1.0443 | Impenatra® II Seal, Graphite/Viton®/Silicon Carbide |
| G1.0451 | Impenatra® II Seal, Silicon Carbide/Viton®/Silicon Carbide |
| G1.401 | Bearing Pedestal |

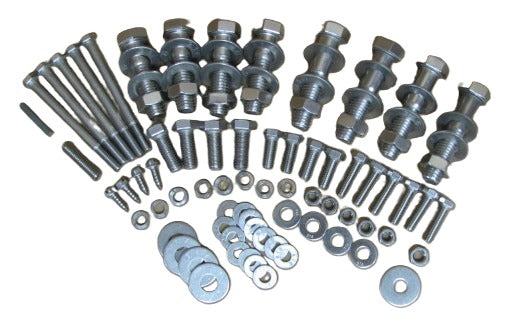

| G1.502 | Pump Hardware Kit |
| G1.601 | Seal Kit: All Essential O-rings & Gaskets for Appropriate Pumps |

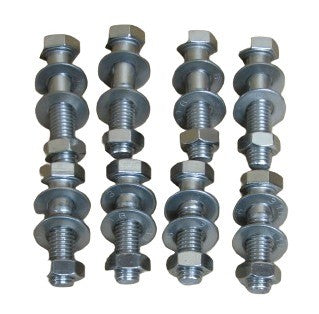

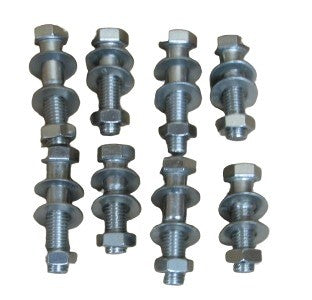

| G123 | Flange Hardware Kit for Pump Discharge |
| G127 | Flange Hardware Kit for Pump Inlet |

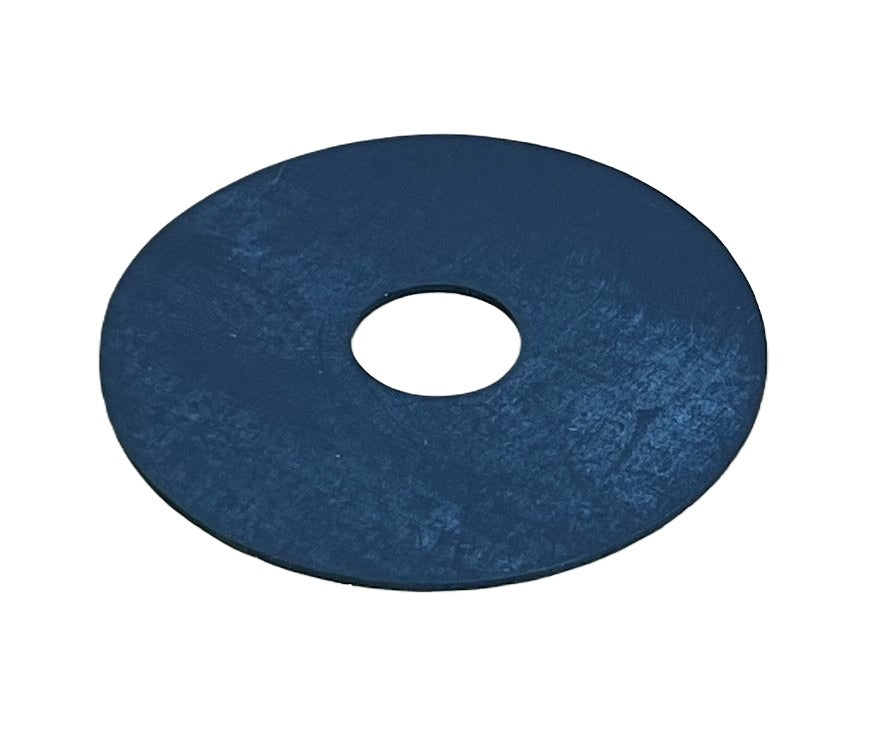

| G130 | Slinger, 3.5" OD |

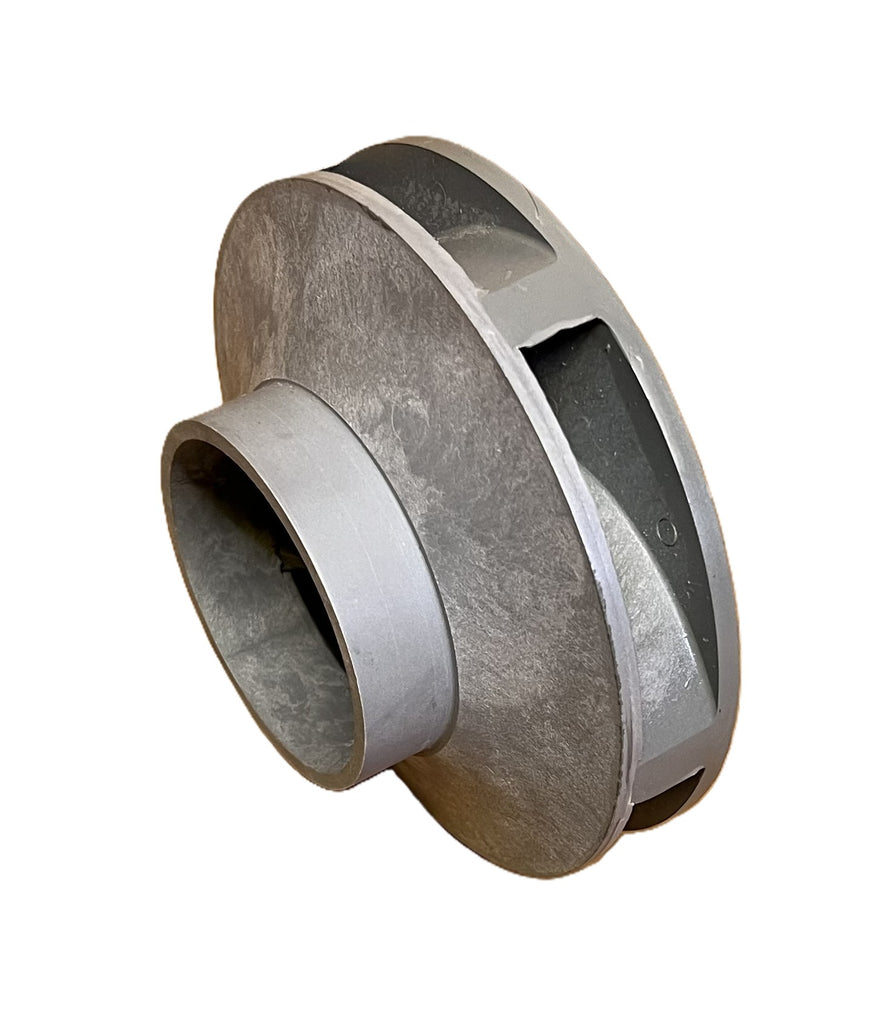

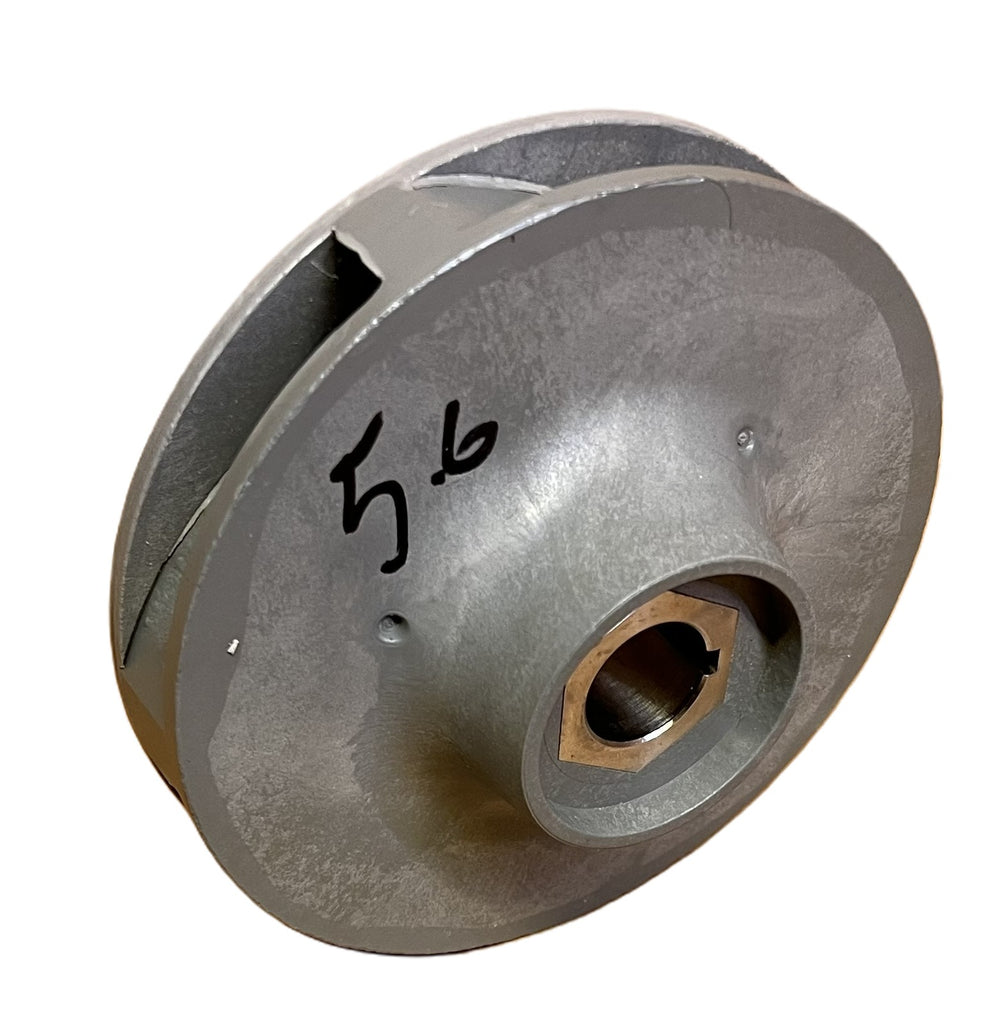

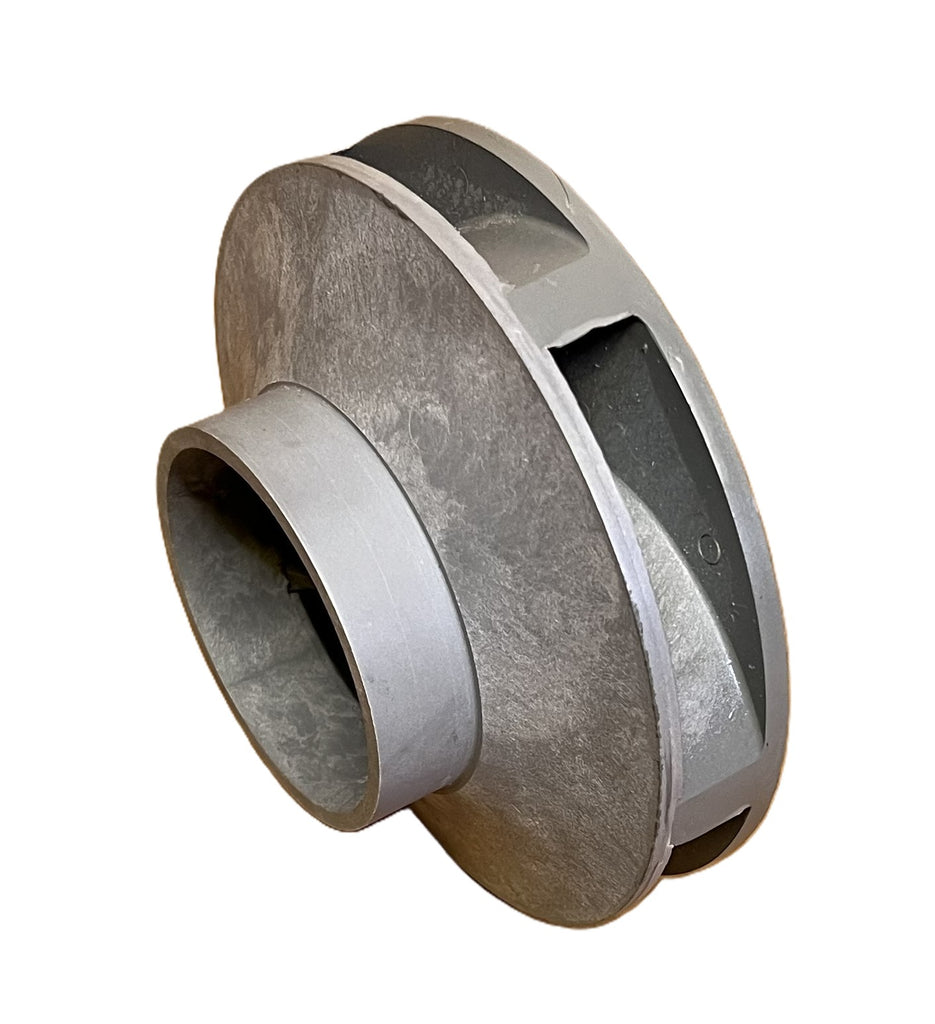

| G20000.05 | Impeller, Full OD, Noryl® |

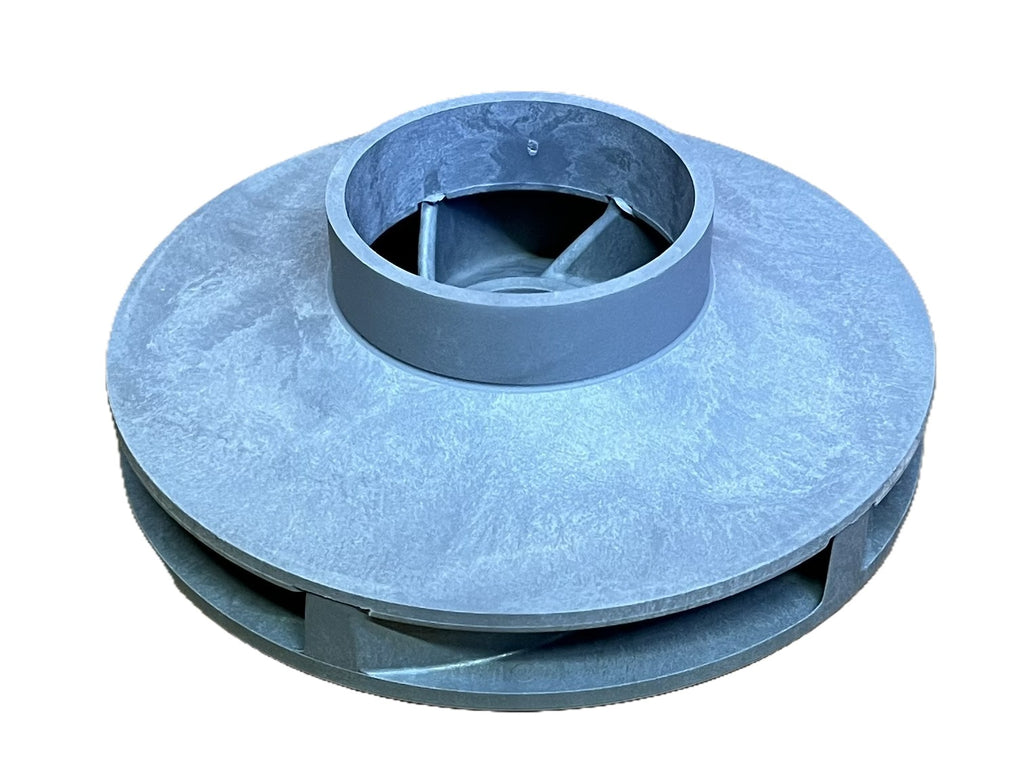

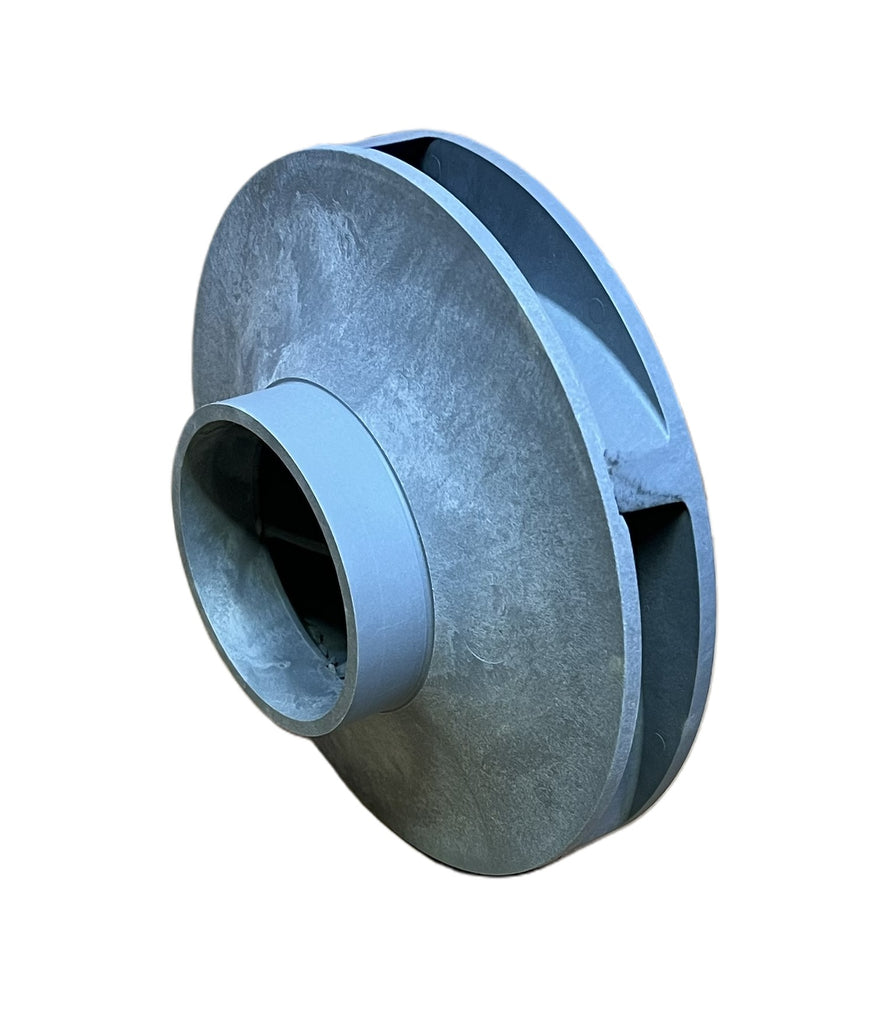

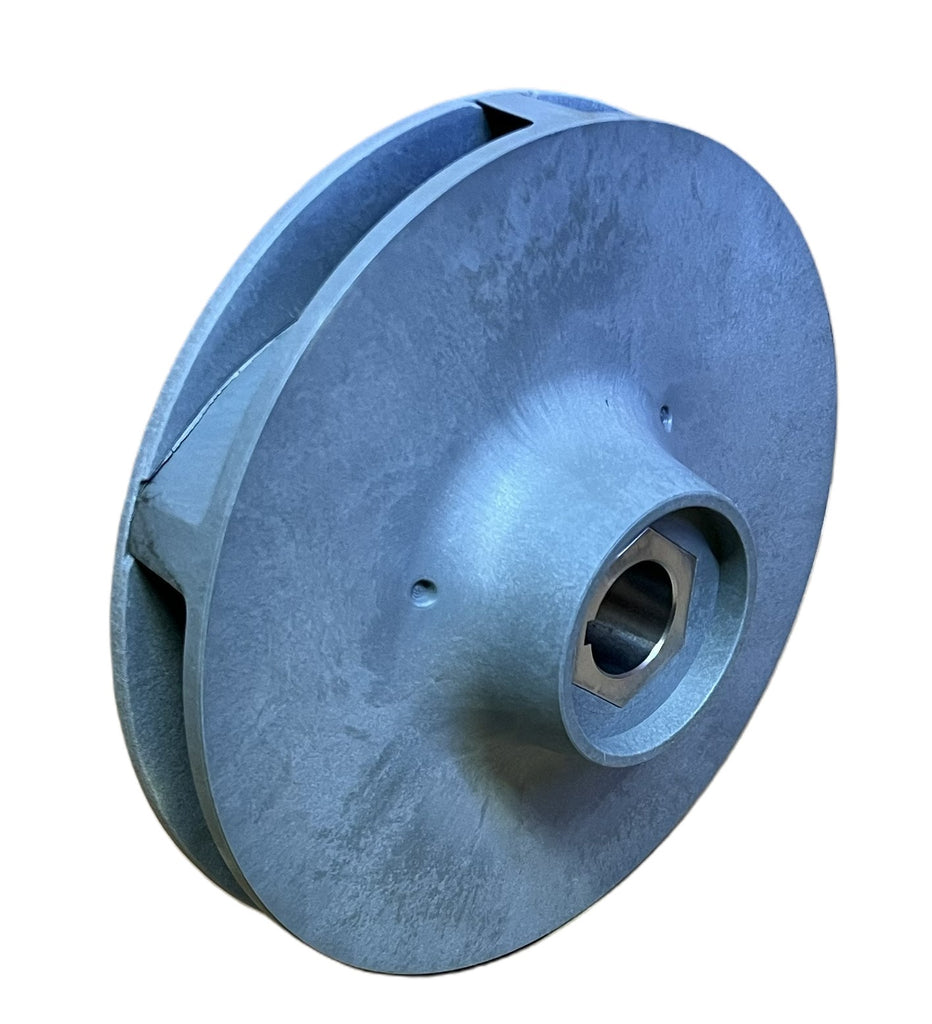

| G20000.05T | Impeller, Trimmed OD, Noryl® |

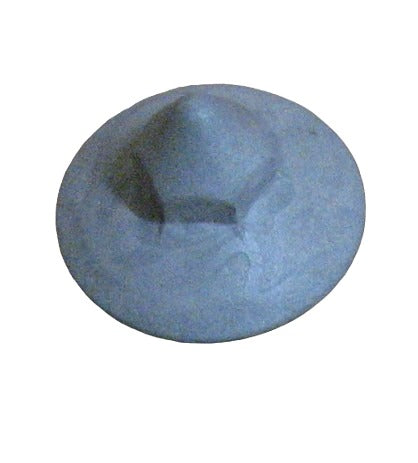

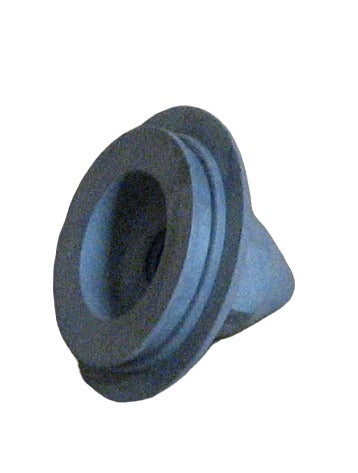

| G201 | Impeller Cap, Noryl® |

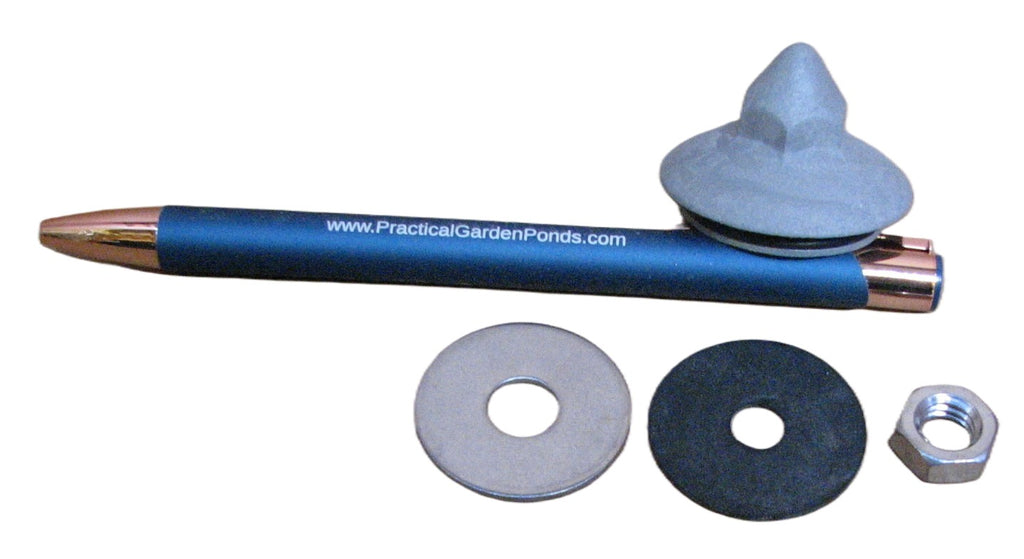

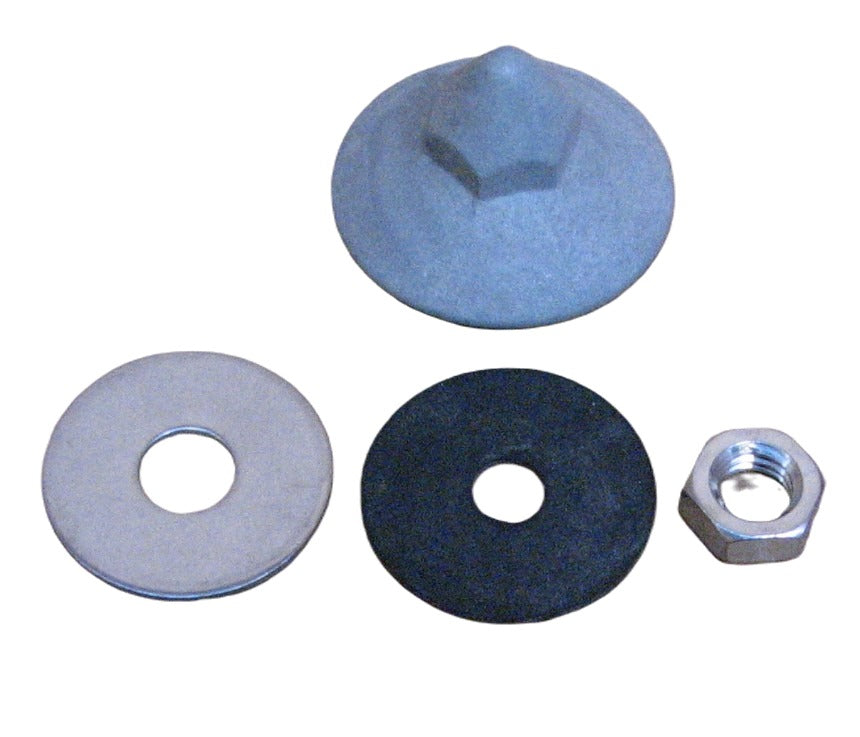

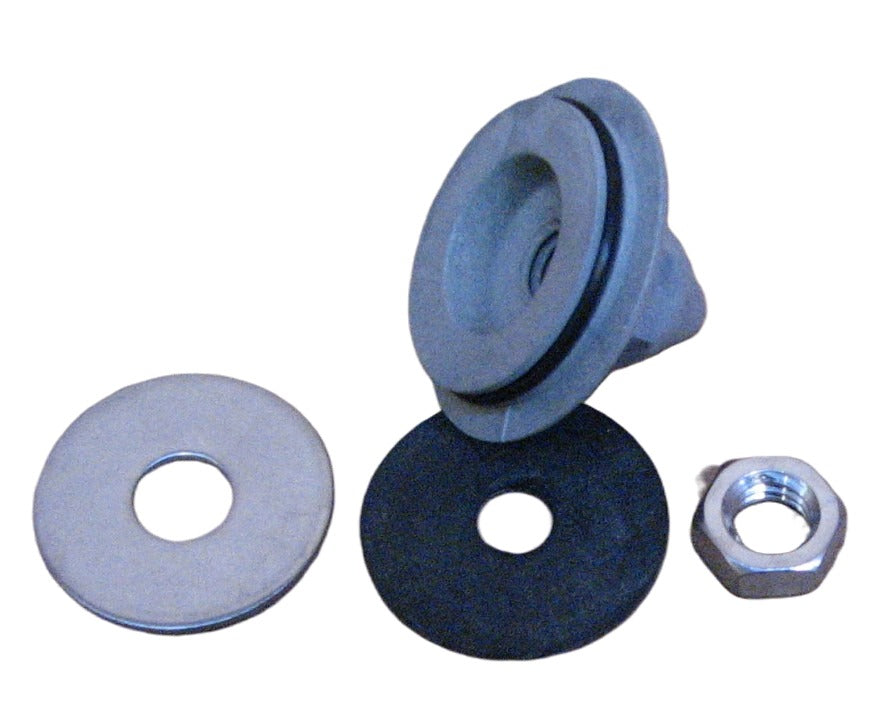

| G201 B ASM | Impeller Cap Assembly, Buna |

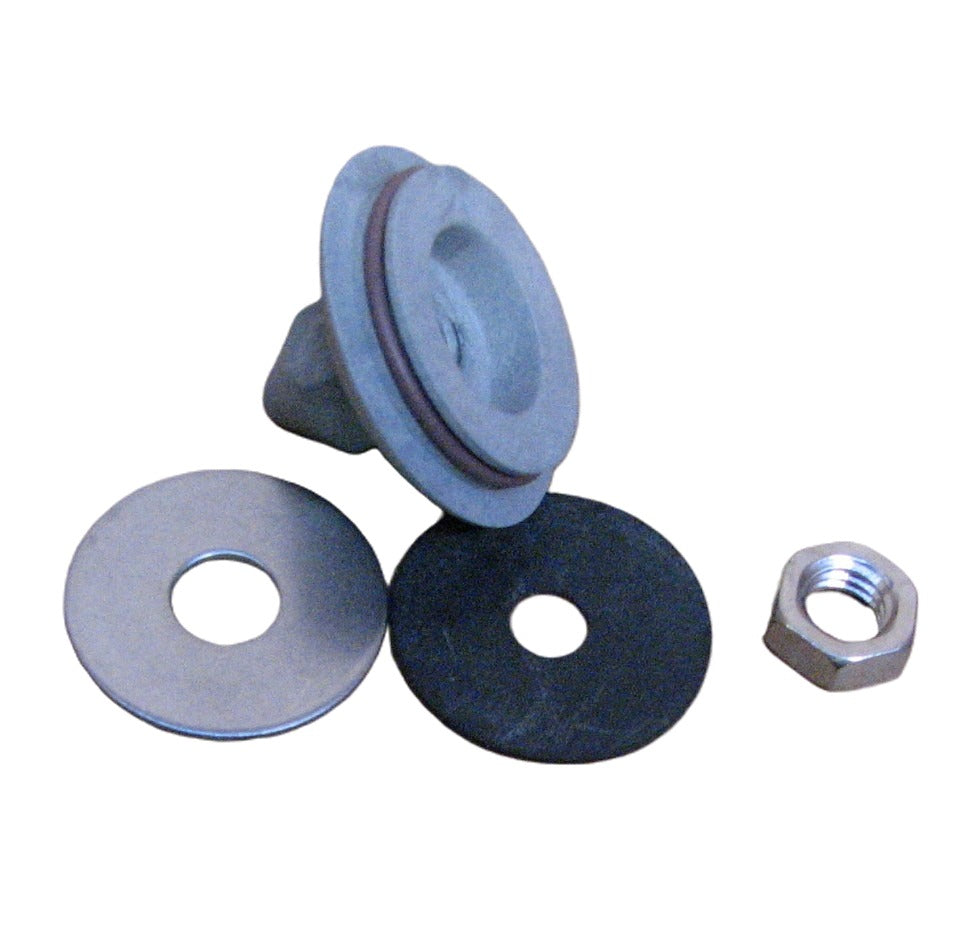

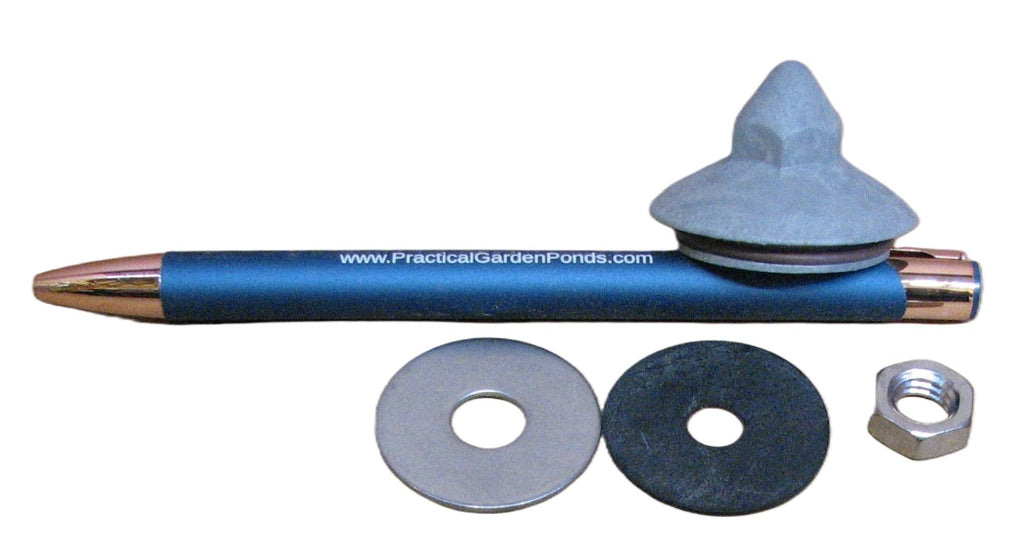

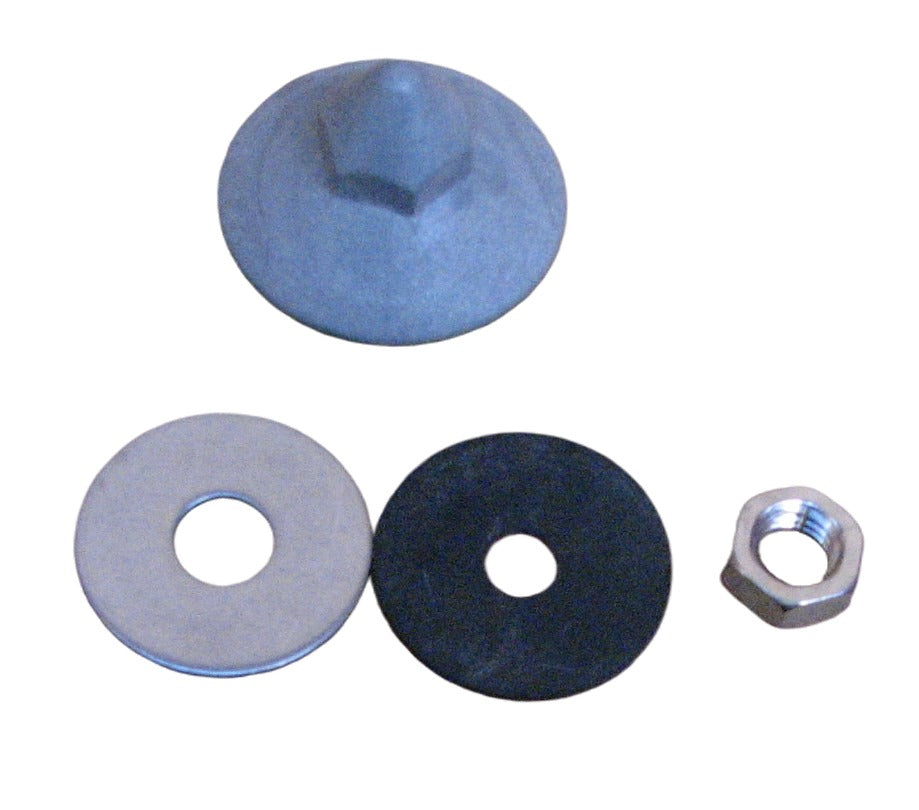

| G201 V ASM | Impeller Cap Assembly, Viton® |
| G203 B | Pump Casing O-Ring, Buna |
| G203 V | Pump Casing O-Ring, Viton® |
| G203060.031 GREY | Bracket |
| G203060.070 GREY | Volute |
| G204 B | Impeller Cap Gasket, Buna |
| G204 V | Impeller Cap Gasket, Viton® |
| G209 | Seal Flush Port Plug N" NPT Sch 80 PVC |

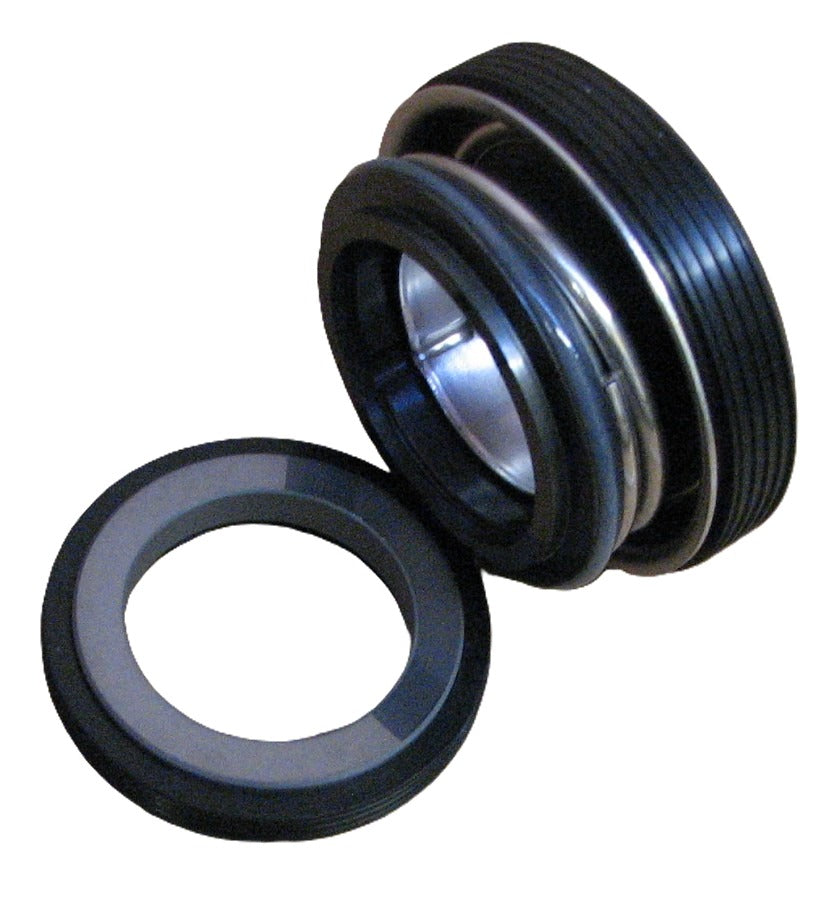

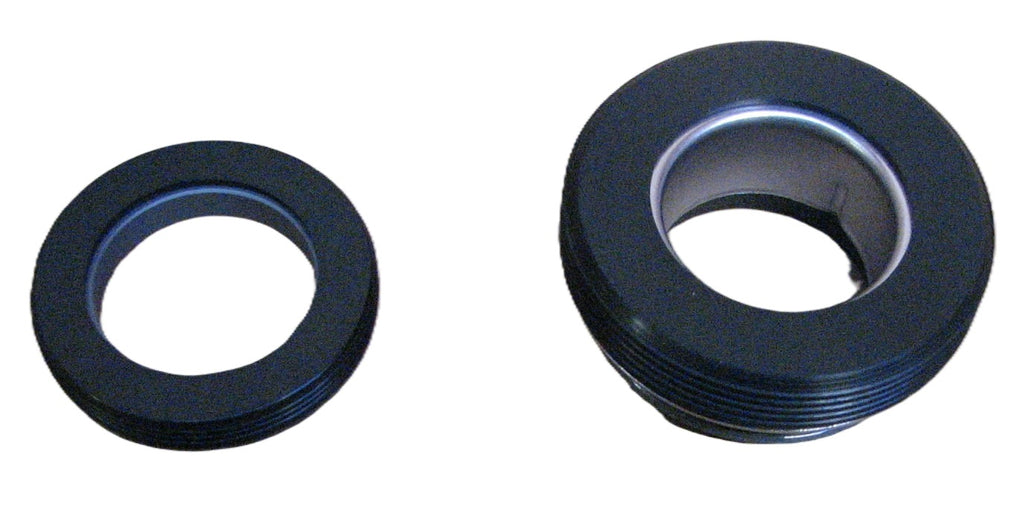

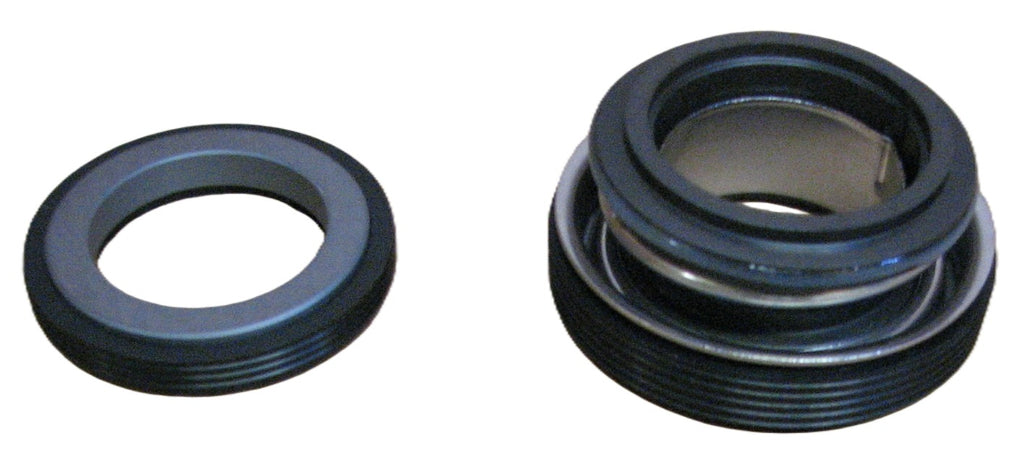

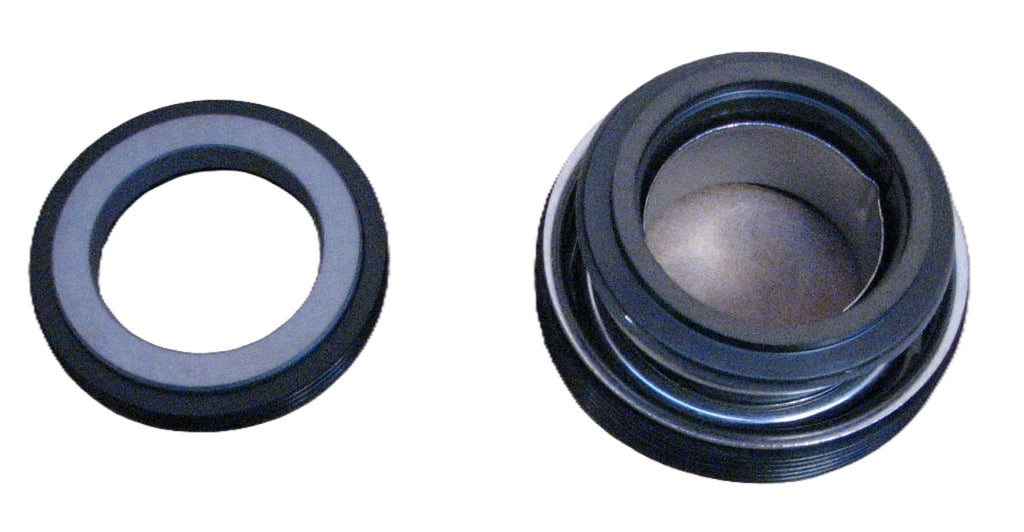

| G209-CG-B | Seals for Appropriate Titan Pumps |
| G210 | Drain Plug K" NPT, Polypropylene |

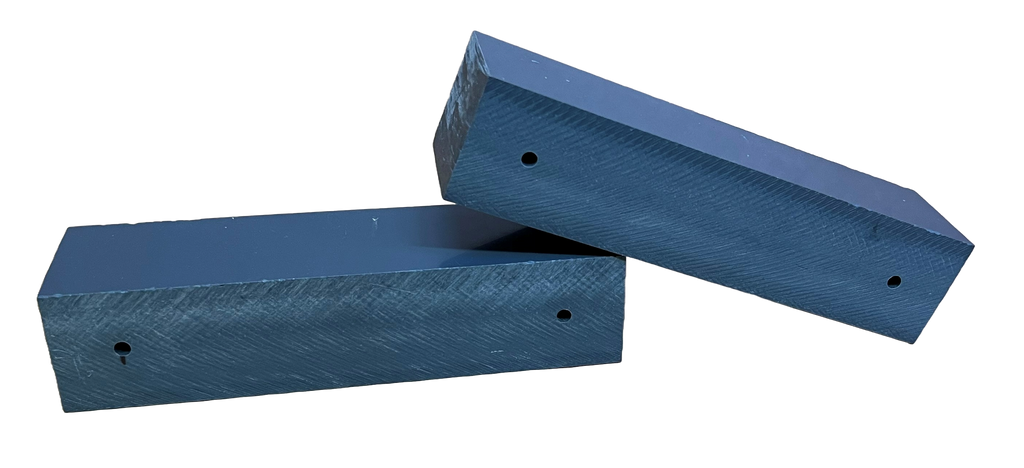

| G211 | HPDE Foot for 143-145JM Motors, Set of 2 |

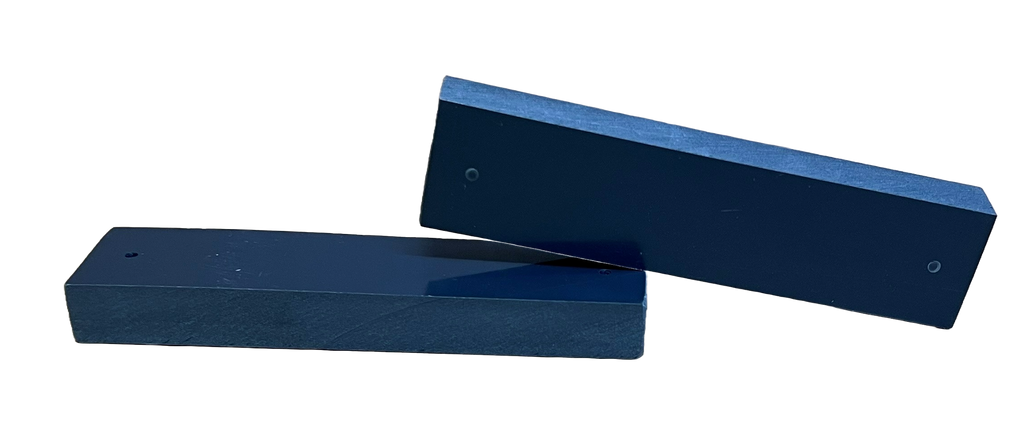

| G212 | HPDE Foot for 182-184JM Motors, Set of 2 |
